2-28 - TURBOCHARGER SYSTEM - 4T-390 EMISSIONS CERTIFIED ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    J916398
    TUBE 50.8 mm OD x 700.1 mm L; Crossover
  • 2
    2
    J916438
    INTAKE AIR HOSE 50.8mm ID x 56.78mm OD x 80mm L; 80 mm (3-1/8 in)
  • 3
    4
    214-1528
    HOSE CLAMP #28, 1.31'' - 2.25'', Type F Worm, W/ Liner; 1-5/16 - 2-1/4 in
  • 4
    1
    REF
    INSTRUCTION; Turbocharger Assy
  • 5
    1
    J919369
    GASKET Bolt Hole (Ctr to Ctr) 44mm x 86mm;
  • 6
    4
    J818823
    STUD M10 x 1.5 x 42mm;
  • 7
    4
    J818824
    FLANGE NUT M10 x 1.5;
  • 8
    1
    J912599
    HOSE 5/8 - 18 Thread x 432mm L;
  • 9
    1
    J918670
    TUBE;
  • 10
    1
    J937706
    GASKET 0.79mm Thk;
  • 11
    2

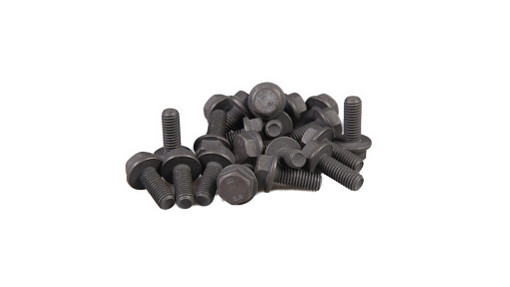

    845-8020
    FLANGE BOLT Hvy Hex, M8 x 1.25 x 20mm, Cl 8.8;
  • 12
    1

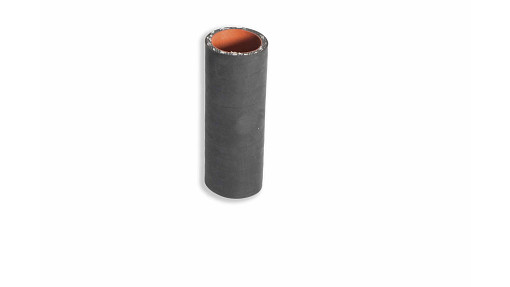

    J286499
    HOSE 22mm ID x 27.4mm OD x 76mm L; 76 mm (3'')
  • 13
    2
    214-1512
    HOSE CLAMP #12, 0.69'' - 1.25'', Type F Worm, W/ Liner;
  • 14
    2

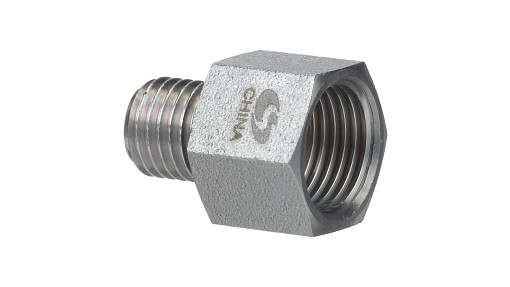

    J919687
    HYD CONNECTOR Female, 5/8 - 18 UNF - 3B x M12 x 1.50 - 6g;
  • 15
    1
    238-5013
    O-RING 0.07'' Thk x 0.426'' ID, -13, Cl 5, 75 Duro;
  • 16
    2
    222-993
    GASKET 3/8 Tube, Fl, Copper;
  • 17
    1
    321702A1
    CLAMP;
  • 18
    1

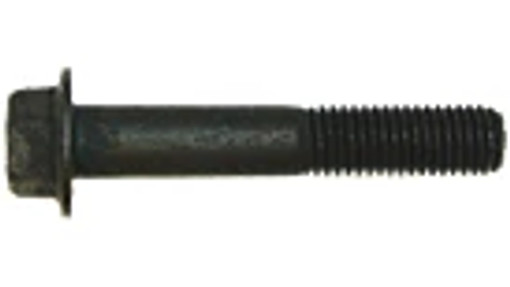

    844-12035
    FLANGE BOLT Hvy Hex, M12 x 35mm, Cl 8.8;
  • 19
    1
    829-1412
    NUT M12 x 1.75, Cl 10.9;
  • 20
    3
    896-11012
    WASHER 13.5mm ID x 24mm OD x 3mm Thk;
  • 21
    1
    J910451
    BRACKET;
  • 22
    1

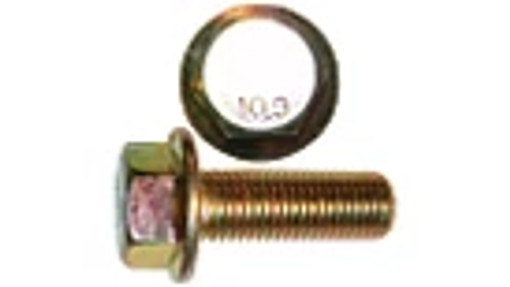

    854-12050
    BOLT Hvy Hex, M12 x 50mm, Cl 10.9;
  • 23
    1
    J913177
    SPACER;
  • 24
    1

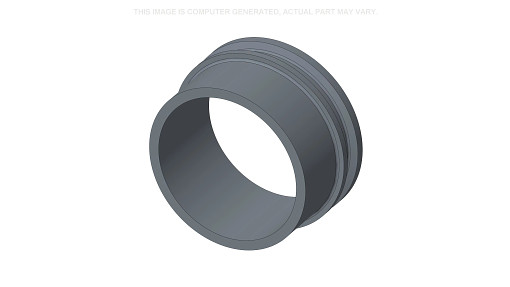

    J910990
    TUBE 64 mm ID x 72.64 mm OD x 40.50 mm L;
  • 25
    1
    A170467
    PIPE CLAMP 72mm ID; Includes Hardware
Select All

Select

Ref.

1

Qty

1

Availability

Part #

J916398

Description

TUBE 50.8 mm OD x 700.1 mm L; Crossover


Alts

Select

Ref.

2

Qty

2

Availability

Part #

J916438

Description

INTAKE AIR HOSE 50.8mm ID x 56.78mm OD x 80mm L; 80 mm (3-1/8 in)


Alts

Select

Ref.

3

Qty

4

Availability

Part #

214-1528

Description

HOSE CLAMP #28, 1.31'' - 2.25'', Type F Worm, W/ Liner; 1-5/16 - 2-1/4 in


Alts

Select

Ref.

4

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; Turbocharger Assy


Alts

Select

Ref.

5

Qty

1

Availability

Part #

J919369

Description

GASKET Bolt Hole (Ctr to Ctr) 44mm x 86mm;


Alts

Select

Ref.

6

Qty

4

Availability

Part #

J818823

Description

STUD M10 x 1.5 x 42mm;


Alts

Select

Ref.

7

Qty

4

Availability

Part #

J818824

Description

FLANGE NUT M10 x 1.5;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

J912599

Description

HOSE 5/8 - 18 Thread x 432mm L;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

J918670

Description

TUBE;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

J937706

Description

GASKET 0.79mm Thk;


Alts

Select

Ref.

11

Qty

2

Availability

Part #

845-8020

Description

FLANGE BOLT Hvy Hex, M8 x 1.25 x 20mm, Cl 8.8;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

J286499

Description

HOSE 22mm ID x 27.4mm OD x 76mm L; 76 mm (3'')


Alts

Select

Ref.

13

Qty

2

Availability

Part #

214-1512

Description

HOSE CLAMP #12, 0.69'' - 1.25'', Type F Worm, W/ Liner;


Alts

Select

Ref.

14

Qty

2

Availability

Part #

J919687

Description

HYD CONNECTOR Female, 5/8 - 18 UNF - 3B x M12 x 1.50 - 6g;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

238-5013

Description

O-RING 0.07'' Thk x 0.426'' ID, -13, Cl 5, 75 Duro;


Alts

Select

Ref.

16

Qty

2

Availability

Part #

222-993

Description

GASKET 3/8 Tube, Fl, Copper;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

321702A1

Description

CLAMP;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

844-12035

Description

FLANGE BOLT Hvy Hex, M12 x 35mm, Cl 8.8;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

829-1412

Description

NUT M12 x 1.75, Cl 10.9;


Alts

Select

Ref.

20

Qty

3

Availability

Part #

896-11012

Description

WASHER 13.5mm ID x 24mm OD x 3mm Thk;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

J910451

Description

BRACKET;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

854-12050

Description

BOLT Hvy Hex, M12 x 50mm, Cl 10.9;


Alts

Select

Ref.

23

Qty

1

Availability

Part #

J913177

Description

SPACER;


Alts

Select

Ref.

24

Qty

1

Availability

Part #

J910990

Description

TUBE 64 mm ID x 72.64 mm OD x 40.50 mm L;


Alts

Select

Ref.

25

Qty

1

Availability

Part #

A170467

Description

PIPE CLAMP 72mm ID; Includes Hardware


Alts
