141A - REAR AXLE AND FINAL DRIVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    A51892
    HOUSING; - axle. R.H. (Replaces A37068)
  • 1
    1
    A51893
    HOUSING; - axle, L.H. (Replaces A37069)
  • 2
    2
    219-36
    LUBE NIPPLE 45 Degree Elbow, 1/8'' - 27 NPTF; FITTING - lube, 1/8'' P.T. 45 deg.
  • 3
    2
    113-604
    BOLT Hex, 5/8'' - 11 x 2'', Gr 5;
  • 3
    6
    113-620
    BOLT Hex, 5/8'' - 11 x 2-1/4'', Gr 5; - 5/8 x 2-1/4'' N.C. hex.
  • 3
    2
    113-618
    BOLT Hex, 5/8'' - 11 x 4'', Gr 5; - 5/8 x 4'' N.C. hex.
  • 4
    10
    92-10
    LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
  • 5
    2
    G10347
    O-RING 0.139'' Thk x 4.984'' ID, -250, Cl 5, 75 Duro; ''O'' RING - housing to case (5 x 5-1/4 x 1/8'')
  • 6
    2
    G13801
    OIL SEAL; - oil, axle shaft inner (2-1/4 x 3-1/8 x 1/2'')
  • 8
    2
    G13822
    SEAL 73.66mm ID x 110.13mm OD x 11mm Thk; - oil, axle shaft outer (3 x 4-11/32 x 1/2'')
  • 9
    2
    G15207
    ROLLER BEARING; CONE - outer bearing, axle shaft
  • 10
    2
    G15208

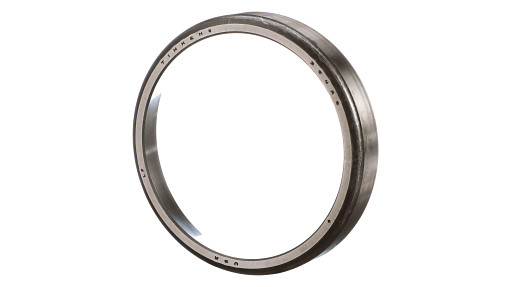

    BEARING CUP 110mm OD x 18.82mm W; CUP - outer bearing, axle shaft
  • 11
    16
    A38208
    WHEEL BOLT 5/8-18 UNF x 7/8'', Class 2A; BOLT - wheel to axle (5/8 x 1'' N.F. spec.)
  • 12
    2
    A38209
    SHAFT; - rear axle (w/o ident. groove) (Order ref. 13 & 15) (used prior to trans. ser. no. 2938061)
  • 13
    2
    A138233
    SHAFT; - rear axle (w/identification groove) (1st used trans. ser. no. 2438061)
  • 14
    2
    G10414
    BEARING, ROLLER, CYL; CONE - inner bearing (Timken #3884) (Use on shaft w/o identification groove)
  • 15
    2
    L33289
    ROLLER BEARING 57.1565mm ID x 21.857mm Thk; CONE - inner bearing, 2-1/4 inch ID (Timken #387A) (Use on shaft w/identification groove)
  • 16
    2
    G10415
    BEARING CUP; CUP - inner bearing, axle shaft
  • 20
    2
    A37925
    GEAR; - final drive
  • 21
    2
    F62105
    WASHER 38.89mm ID x 69.85mm OD x 6.35mm Thk; - take-up (1-17/32 x 2-3/4 x 1/4'')
  • 22
    2
    A30075
    WHEEL NUT; - axle shaft (1-1/2'' N.F. slotted)
  • 23
    2
    132-157
    COTTER PIN Ext Prong Sq Cut, 1/4'' x 2 1/2''; Pin, Split (Cotter), 1/4'' x 2 1/2''
