074 - INSTRUMENTS AND WIRING, (188) DIESEL ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    A38816
    LAMP; ASSY. - warning, alternator, Includes: Ref. 2
  • 3
    2
    A24087
    LAMP BASE; LAMP ASSY. - illuminating, panel, Includes: Ref. 4
  • 4
    1
    A22349
    BULB; - lamp (#363)
  • 5
    1
    A39804
    GAUGE; - engine temperature
  • 6
    1
    A24078
    ELECTRICAL WIRE; WIRE - temp. gauge to st. switch (green 15'')
  • 10
    1
    A24084
    LAMP; ASSY. - warning, oil pressure, Includes: Ref. 11
  • 11
    1
    A24354
    BULB; - red (#57R)
  • 20
    1
    A39806
    TACHOMETER; - (includes hour meter)
  • 21
    1
    A39819
    CABLE; ASSY. - tach. drive (52'' cable), Includes: Ref. 22
  • 22
    1
    A24523
    KIT; CABLE KIT - replacement (cut to req. length)
  • UAR
    345-39
    SEALANT; ANT - tach. drive
  • 23
    1
    A38942
    DRIVE; - tachometer cable (in block)
  • 24
    1
    515-2295
    CLAMP 3/8'', Insul, 5/16'' Bolt; - tach. cable (coated)
  • 28
    1
    A22874
    HOLDER; ASSY. - fuse, Includes: Ref. 29
  • 29
    1
    A10958
    CAP; - fuse holder
  • 30
    1
    223-20
    FUSE 20 Amp, Type SFE; - 20 amp
  • 31
    1
    A22876
    ELECTRICAL WIRE; WIRE - fuse to start switch (red 8-1/2'')
  • 32
    1
    A22875
    ELECTRICAL WIRE; WIRE - fuse to light switch (red 4'')
  • 33
    1
    G13142
    IGNITION SWITCH; SWITCH ASSY. - light, Includes: Ref. 34
  • 34
    1
    A137204
    KNOB; - light switch (Replaces G13141)
  • 35
    1
    A24510

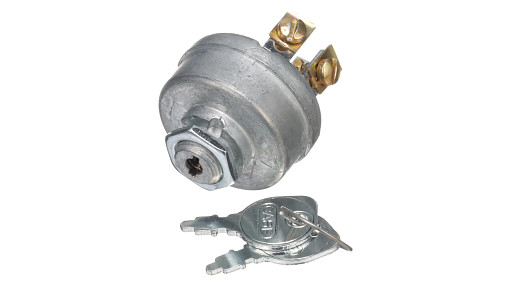

    SWITCH; ASSY - starting, w/keys, (Diesel) Includes: Ref 36
  • 36
    1
    A24509
    KEY; - ignition switch (Set of 2)
  • 38
    3
    187-1016
    SCREW Cross Truss Hd, #8 x 5/8''; - #8 x 1/2'' truss hd. self-tapping
  • 39
    3
    131-130
    NUT; - #8 speed type
  • 40
    1
    A24076
    PLUG; HARNESS ASSY. - inst. wiring (w/red plug)
  • 41
    1
    A21613
    HARNESS; ASSY. - inst. wiring (w/black plug)
  • 45
    1
    A59568
    INDICATOR; - air cleaner
  • 46
    1
    217-194
    FITTING 1/8'' - 27 Male NPTF x 1/8'' - 27 Male NPTF; NIPPLE - brass, 1/8 x 1/8''
  • 47
    1
    222-5113
    FITTING 90 Degree, 7/16''-24 x 1/8'' NPTF; ELBOW - 90 degrees, 1/4'' tube x 7/16''-24
Select All

Select

Ref.

1

Qty

1

Availability

Part #

A38816

Description

LAMP; ASSY. - warning, alternator, Includes: Ref. 2


Alts

Select

Ref.

3

Qty

2

Availability

Part #

A24087

Description

LAMP BASE; LAMP ASSY. - illuminating, panel, Includes: Ref. 4


Alts

Select

Ref.

4

Qty

1

Availability

Part #

A22349

Description

BULB; - lamp (#363)


Alts

Select

Ref.

5

Qty

1

Availability

Part #

A39804

Description

GAUGE; - engine temperature


Alts

Select

Ref.

6

Qty

1

Availability

Part #

A24078

Description

ELECTRICAL WIRE; WIRE - temp. gauge to st. switch (green 15'')


Alts

Select

Ref.

10

Qty

1

Availability

Part #

A24084

Description

LAMP; ASSY. - warning, oil pressure, Includes: Ref. 11


Alts

Select

Ref.

11

Qty

1

Availability

Part #

A24354

Description

BULB; - red (#57R)


Alts

Select

Ref.

20

Qty

1

Availability

Part #

A39806

Description

TACHOMETER; - (includes hour meter)


Alts

Select

Ref.

21

Qty

1

Availability

Part #

A39819

Description

CABLE; ASSY. - tach. drive (52'' cable), Includes: Ref. 22


Alts

Select

Ref.

22

Qty

1

Availability

Part #

A24523

Description

KIT; CABLE KIT - replacement (cut to req. length)


Alts

Select

Ref.

Qty

UAR

Availability

Part #

345-39

Description

SEALANT; ANT - tach. drive


Alts

Select

Ref.

23

Qty

1

Availability

Part #

A38942

Description

DRIVE; - tachometer cable (in block)


Alts

Select

Ref.

24

Qty

1

Availability

Part #

515-2295

Description

CLAMP 3/8'', Insul, 5/16'' Bolt; - tach. cable (coated)


Alts

Select

Ref.

28

Qty

1

Availability

Part #

A22874

Description

HOLDER; ASSY. - fuse, Includes: Ref. 29


Alts

Select

Ref.

29

Qty

1

Availability

Part #

A10958

Description

CAP; - fuse holder


Alts

Select

Ref.

30

Qty

1

Availability

Part #

223-20

Description

FUSE 20 Amp, Type SFE; - 20 amp


Alts

Select

Ref.

31

Qty

1

Availability

Part #

A22876

Description

ELECTRICAL WIRE; WIRE - fuse to start switch (red 8-1/2'')


Alts

Select

Ref.

32

Qty

1

Availability

Part #

A22875

Description

ELECTRICAL WIRE; WIRE - fuse to light switch (red 4'')


Alts

Select

Ref.

33

Qty

1

Availability

Part #

G13142

Description

IGNITION SWITCH; SWITCH ASSY. - light, Includes: Ref. 34


Alts

Select

Ref.

34

Qty

1

Availability

Part #

A137204

Description

KNOB; - light switch (Replaces G13141)


Alts

Select

Ref.

35

Qty

1

Availability

Part #

A24510

Description

SWITCH; ASSY - starting, w/keys, (Diesel) Includes: Ref 36


Alts

Select

Ref.

36

Qty

1

Availability

Part #

A24509

Description

KEY; - ignition switch (Set of 2)


Alts

Select

Ref.

38

Qty

3

Availability

Part #

187-1016

Description

SCREW Cross Truss Hd, #8 x 5/8''; - #8 x 1/2'' truss hd. self-tapping


Alts

Select

Ref.

39

Qty

3

Availability

Part #

131-130

Description

NUT; - #8 speed type


Alts

Select

Ref.

40

Qty

1

Availability

Part #

A24076

Description

PLUG; HARNESS ASSY. - inst. wiring (w/red plug)


Alts

Select

Ref.

41

Qty

1

Availability

Part #

A21613

Description

HARNESS; ASSY. - inst. wiring (w/black plug)


Alts

Select

Ref.

45

Qty

1

Availability

Part #

A59568

Description

INDICATOR; - air cleaner


Alts

Select

Ref.

46

Qty

1

Availability

Part #

217-194

Description

FITTING 1/8'' - 27 Male NPTF x 1/8'' - 27 Male NPTF; NIPPLE - brass, 1/8 x 1/8''


Alts

Select

Ref.

47

Qty

1

Availability

Part #

222-5113

Description

FITTING 90 Degree, 7/16''-24 x 1/8'' NPTF; ELBOW - 90 degrees, 1/4'' tube x 7/16''-24


Alts
