Ref.
Qty
Part #
Alts
Description
-
11FLYWHEEL; ASSY - engine, Includes: Ref. 2
-
21GEAR; - ring (135T)
-
34BOLT; - flywheel (7/16 x 2'' N.F. place)
-
41OIL SEAL; - oil, flywheel (1-3/16 x 2-5/32 x 1/4'')
-
51SNAP RING 2.125'', Int, #212; RING - snap, , brg 2.125'', Int, #212
-
61BALL BEARING 1.1811'' ID x 2.1654'' OD x 0.5118''; BEARING - flywheel
-
71O-RING 2.237'' ID x 2.443'' OD x 0.103''; RING - seal, flywheel (2-7/32 x 2-7/16 x 7/64'')
-
131OIL SEAL; - oil, crankshaft rear (4 x 5 x 1/2'');Now subs to part nbr A51339 (seal wear ring repair kit is part nbr A49851).
-
141WINCH FRAME; - oil seal, rear (Replaces G2017)
-
154BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; - 1/4 x 3/4'' N.C. hex hd.
-
153BOLT; - 1/4 x 1'' N.C. hex hd.
-
167LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
171GASKET; - retainer, rear oil seal (Replaces G46802)
-
181CRANKSHAFT; - engine
-
211BEARING LINER 73.72mm ID x 78.54mm OD x 39.69mm W; LINER SET - rear bearing (Std.) (Set of 2)
-
211LINING; LINER SET - rear bearing (-.002'') (Set of 2)
-
211BEARING LINER 73.44mm ID x 78.54mm OD x 39.69mm W; LINER SET - rear bearing (.010'') (Set of 2)
-
211KIT; LINER SET - rear bearing (-.020'') (Set of 2)
-
211BEARING LINER; LINER SET - rear bearing (-.030'') (Set of 2)
-
222LINING; LINER SET - intermediate bearing (Std.) (Set of 2)
-
222LINING; LINER SET - intermediate bearing (-.002'') (Set of 2)
-
222BEARING LINER 73.44mm ID x 78.54mm OD x 25.4mm W; LINER SET - intermediate bearing (-.010'') (Set of 2)
-
222CRANKSHAFT BEARING 3.067'' ID x 3.092'' OD x 1''; LINER SET - intermediate bearing (-.020'') (Set of 2)
-
222LINING; LINER SET - intermediate bearing (-.030'') (Set of 2)
-
231BEARING LINER 73.41mm ID x 96.84mm OD x 34.87mm W; LINER SET - center bearing (Std.) (Set of 2)
-
231LINING; LINER SET - center bearing (-.002'') (Set of 2)
-
231BEARING LINER 73.66mm ID x 96.84mm OD x 34.87mm W; LINER SET - center bearing (-.010'') (Set of 2)
-
231BEARING LINER 73.66mm ID x 96.84mm OD x 34.87mm W; LINER SET - center bearing (-.020'') (Set of 2)
-
231LINING; LINER SET - center bearing (-.030'') (Set of 2)
-
241BEARING LINER 73.69mm ID x 78.54mm OD x 32.66mm W; LINER SET - front bearing (Std.) (Set of 2)
-
241LINING; LINER SET - front bearing (-.002'') (Set of 2)
-
241BEARING LINER 73.44mm ID x 78.54mm OD x 32.66mm W; LINER SET - front bearing (-.010'') (Set of 2)
-
241LINING; LINER SET - front bearing (-.020'') (Set of 2)
-
241LINING; LINER SET - front bearing (-.030'') (Set of 2)
-
251CAP; - rear bearing liner (Used w/cast pan)
-
251CAP; - rear bearing liner (Used w/stamped pan)
-
262CAP; - intermediate bearing liner
-
271CAP; - center bearing liner
-
281CAP; - front bearing liner
-
298BOLT; - bearing cap (1/2 x 4-1/2'' N.C. hex., sltd.)
-
302BOLT; - oil pump & brg. cap (1/2 x 5-1/8'' N.C. hex., sltd)
-
312WOODRUFF KEY Hi-Pro, 1'' Dia x 1/4'' x 1 1/16''; KEY - pulley & gear to crankshaft
-
321BUSHING; SPACER - thrust, crankshaft
-
331GEAR; - crankshaft (24T)
-
341SLINGER; - oil
-
351OIL SEAL; - oil, crankshaft, front (2 x 3 x 1/2'');Now subs to part nbr A39110 (seal wear ring repair kit is part nbr A155893).
-
361X; PULLEY - fan & generator drive
-
371NUT;
-
381FLEXIBLE COUPLING 13T; COUPLING ASSY. - flexible, Includes: Ref. 39
-
394BLOCK; BUSHING - flex
-
404BOLT Hex, 7/16'' - 14 x 1-1/2'', Gr 5; Hex, 7/16''-14 x 1 1/2, G5
-
414LOCK WASHER 7/16'';
-
424WASHER 11.51mm ID x 19.05mm OD x 1.59mm Thk; (29/64 x 3/4 x 16 ga.)
Select All
Select
Ref.
1Qty
1Availability
Part #
A144358Description
FLYWHEEL; ASSY - engine, Includes: Ref. 2Img
Alts
Select
Ref.
3Qty
4Availability
Part #
A37216Description

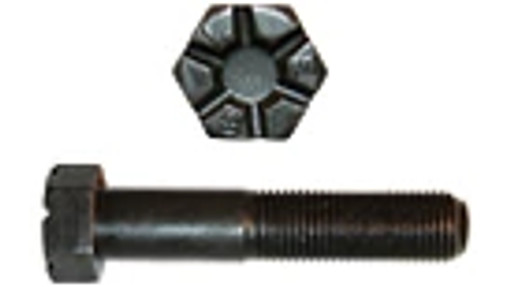

BOLT; - flywheel (7/16 x 2'' N.F. place)Img
Alts
Select
Ref.
4Qty
1Availability
Part #
A37647Description
OIL SEAL; - oil, flywheel (1-3/16 x 2-5/32 x 1/4'')Img
Alts
Select
Ref.
5Qty
1Availability
Part #
49482Description
SNAP RING 2.125'', Int, #212; RING - snap, , brg 2.125'', Int, #212Img
Alts
Select
Ref.
6Qty
1Availability
Part #
T17389Description
BALL BEARING 1.1811'' ID x 2.1654'' OD x 0.5118''; BEARING - flywheelImg
Alts
Select
Ref.
7Qty
1Availability
Part #
A37646Description
O-RING 2.237'' ID x 2.443'' OD x 0.103''; RING - seal, flywheel (2-7/32 x 2-7/16 x 7/64'')Img
Alts
Select
Ref.
13Qty
1Availability
Part #
A36610Description
OIL SEAL; - oil, crankshaft rear (4 x 5 x 1/2'');Now subs to part nbr A51339 (seal wear ring repair kit is part nbr A49851).Img
Alts
Select
Ref.
14Qty
1Availability
Part #
A38410Description
WINCH FRAME; - oil seal, rear (Replaces G2017)Img
Alts
Select
Ref.
15Qty
4Availability
Part #
326-412Description
BOLT Hex, 1/4'' - 20 x 3/4'', Gr 8; - 1/4 x 3/4'' N.C. hex hd.Img
Alts
Select
Ref.
16Qty
7Availability
Part #
92-4Description
LOCK WASHER 1/4''; WASHER, LOCK, 1/4''Img
Alts
Select
Ref.
17Qty
1Availability
Part #
A38196Description
GASKET; - retainer, rear oil seal (Replaces G46802)Img
Alts
Select
Ref.
21Qty
1Availability
Part #
A36495Description
BEARING LINER 73.72mm ID x 78.54mm OD x 39.69mm W; LINER SET - rear bearing (Std.) (Set of 2)Img
Alts
Select
Ref.
21Qty
1Availability
Part #
A36496Description
LINING; LINER SET - rear bearing (-.002'') (Set of 2)Img
Alts
Select
Ref.
21Qty
1Availability
Part #
A36497Description
BEARING LINER 73.44mm ID x 78.54mm OD x 39.69mm W; LINER SET - rear bearing (.010'') (Set of 2)Img
Alts
Select
Ref.
21Qty
1Availability
Part #
A36498Description
KIT; LINER SET - rear bearing (-.020'') (Set of 2)Img
Alts
Select
Ref.
21Qty
1Availability
Part #
A36499Description
BEARING LINER; LINER SET - rear bearing (-.030'') (Set of 2)Img
Alts
Select
Ref.
22Qty
2Availability
Part #
A36485Description
LINING; LINER SET - intermediate bearing (Std.) (Set of 2)Img
Alts
Select
Ref.
22Qty
2Availability
Part #
A36486Description
LINING; LINER SET - intermediate bearing (-.002'') (Set of 2)Img
Alts
Select
Ref.
22Qty
2Availability
Part #
A36487Description
BEARING LINER 73.44mm ID x 78.54mm OD x 25.4mm W; LINER SET - intermediate bearing (-.010'') (Set of 2)Img
Alts
Select
Ref.
22Qty
2Availability
Part #
A36488Description
CRANKSHAFT BEARING 3.067'' ID x 3.092'' OD x 1''; LINER SET - intermediate bearing (-.020'') (Set of 2)Img
Alts
Select
Ref.
22Qty
2Availability
Part #
A36489Description
LINING; LINER SET - intermediate bearing (-.030'') (Set of 2)Img
Alts
Select
Ref.
23Qty
1Availability
Part #
A36490Description
BEARING LINER 73.41mm ID x 96.84mm OD x 34.87mm W; LINER SET - center bearing (Std.) (Set of 2)Img
Alts
Select
Ref.
23Qty
1Availability
Part #
A36491Description
LINING; LINER SET - center bearing (-.002'') (Set of 2)Img
Alts
Select
Ref.
23Qty
1Availability
Part #
A36492Description
BEARING LINER 73.66mm ID x 96.84mm OD x 34.87mm W; LINER SET - center bearing (-.010'') (Set of 2)Img
Alts
Select
Ref.
23Qty
1Availability
Part #
A36493Description
BEARING LINER 73.66mm ID x 96.84mm OD x 34.87mm W; LINER SET - center bearing (-.020'') (Set of 2)Img
Alts
Select
Ref.
23Qty
1Availability
Part #
A36494Description
LINING; LINER SET - center bearing (-.030'') (Set of 2)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
A36480Description

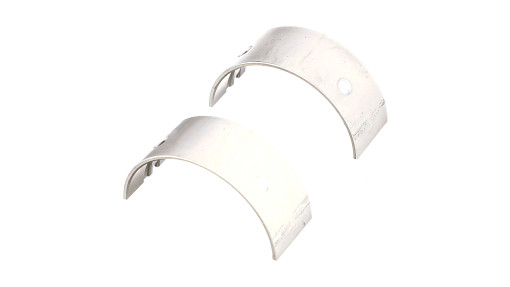

BEARING LINER 73.69mm ID x 78.54mm OD x 32.66mm W; LINER SET - front bearing (Std.) (Set of 2)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
A36481Description
LINING; LINER SET - front bearing (-.002'') (Set of 2)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
A36482Description
BEARING LINER 73.44mm ID x 78.54mm OD x 32.66mm W; LINER SET - front bearing (-.010'') (Set of 2)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
A36483Description

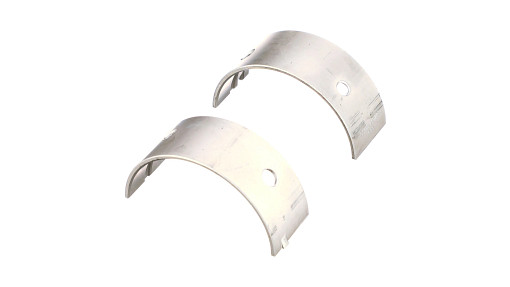

LINING; LINER SET - front bearing (-.020'') (Set of 2)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
A36484Description
LINING; LINER SET - front bearing (-.030'') (Set of 2)Img
Alts
Select
Ref.
25Qty
1Availability
Part #
A38385Description
CAP; - rear bearing liner (Used w/cast pan)Img
Alts
Select
Ref.
25Qty
1Availability
Part #
G2129Description
CAP; - rear bearing liner (Used w/stamped pan)Img
Alts
Select
Ref.
26Qty
2Availability
Part #
G2128Description
CAP; - intermediate bearing linerImg
Alts
Select
Ref.
29Qty
8Availability
Part #
113-444Description
BOLT; - bearing cap (1/2 x 4-1/2'' N.C. hex., sltd.)Img
Alts
Select
Ref.
30Qty
2Availability
Part #
113-445Description
BOLT; - oil pump & brg. cap (1/2 x 5-1/8'' N.C. hex., sltd)Img
Alts
Select
Ref.
31Qty
2Availability
Part #
126-216Description
WOODRUFF KEY Hi-Pro, 1'' Dia x 1/4'' x 1 1/16''; KEY - pulley & gear to crankshaftImg
Alts
Select
Ref.
32Qty
1Availability
Part #
A29294Description
BUSHING; SPACER - thrust, crankshaftImg
Alts
Select
Ref.
35Qty
1Availability
Part #
A36609Description
OIL SEAL; - oil, crankshaft, front (2 x 3 x 1/2'');Now subs to part nbr A39110 (seal wear ring repair kit is part nbr A155893).Img
Alts
Select
Ref.
36Qty
1Availability
Part #
G11342Description
X; PULLEY - fan & generator driveImg
Alts
Select
Ref.
38Qty
1Availability
Part #
D140524Description

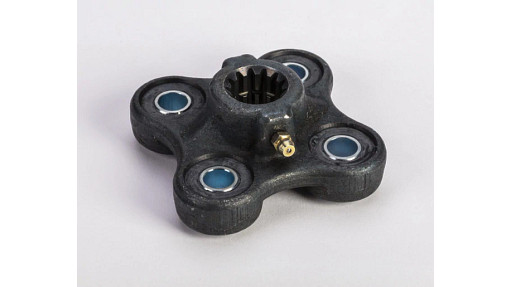

FLEXIBLE COUPLING 13T; COUPLING ASSY. - flexible, Includes: Ref. 39Img
Alts
Select
Ref.
40Qty
4Availability
Part #
13-724Description
BOLT Hex, 7/16'' - 14 x 1-1/2'', Gr 5; Hex, 7/16''-14 x 1 1/2, G5Img
Alts
Select
Ref.
42Qty
4Availability
Part #
A30013Description

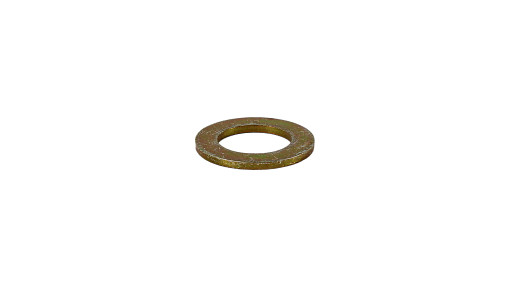

WASHER 11.51mm ID x 19.05mm OD x 1.59mm Thk; (29/64 x 3/4 x 16 ga.)Img
