282 - G101182 BACKHOE SWING CYLINDER, WITH MALE TRUNNION BUSHINGS & ONE PIECE PISTON
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    G101182
    CYLINDER; ASSEMBLY - swing, 4'' (102 mm) ID x 11-1/4'' (286 mm) stroke, see footnote, Includes: Ref. 2 - 23
  • 2
    1
    G34877
    CYLINDER 101.47 mm ID x 101.6 mm DIA x 471.4 mm L; TUBE ASSEMBLY - cylnder, Includes: Ref. 3
  • 3
    2
    G34875
    BUSHING 50.67mm ID x 60.25mm OD x 33.53mm L; - tube
  • 1
    G34331
    GLAND; ASSEMBLY - cylinder, Includes: Ref. 4 - 10
  • 4
    1
    NSS
    NOT SOLD SEPARAT; GLAND - cylinder
  • 5
    1
    NSS
    NOT SOLD SEPARAT; RING - retaining
  • 6
    1
    D95144

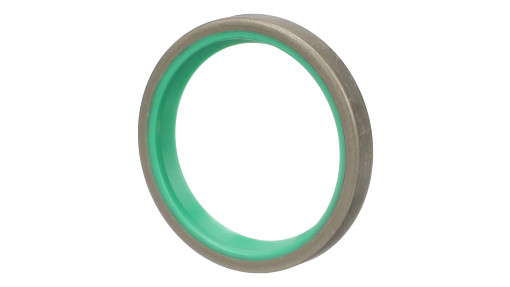

    WIPER SEAL 50.77mm ID x 63.52mm OD x 7.92mm Thk; Wiper - piston rod, outer;Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G102401
  • 7
    1
    G34322
    BEARING; - center;Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G102401
  • 8
    1
    D36971
    RING; SEAL - piston rod;Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G100778;Part of seal kit P/N G102401
  • 9
    1
    A27507
    O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; - gland;Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G102401
  • 10
    1
    G32176

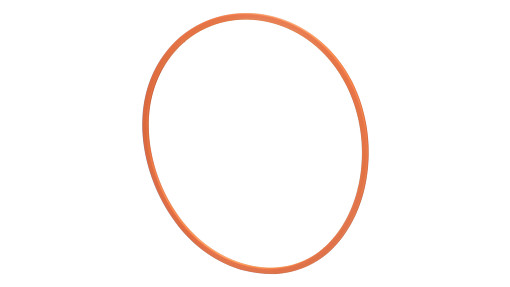

    BACK-UP RING 101.22mm ID x 107.32mm OD x 1.4mm Thk; Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G102401
  • 11
    1
    187-1031
    SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self-tapping, no. 8 - 32 NC x 1/4
  • 12
    1
    G34775
    ROD ASSY.; ROD ASSEMBLY - piston, 2'' (51 mm) diameter, Includes: Ref. 13
  • 13
    2
    G34854
    BUSHING 44.58mm ID x 53.98mm OD x 22.35mm L; - piston rod
  • 14
    1
    G101309
    PISTON; - cylinder
  • 15
    1
    G102285

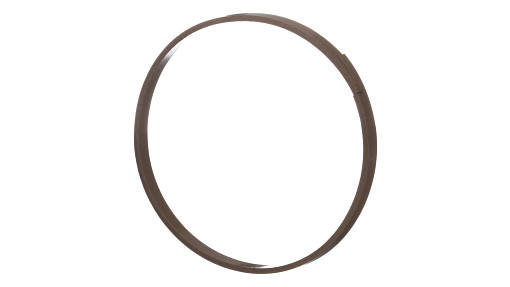

    SEAL Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk; - piston;Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G102401
  • 16
    1
    G100440

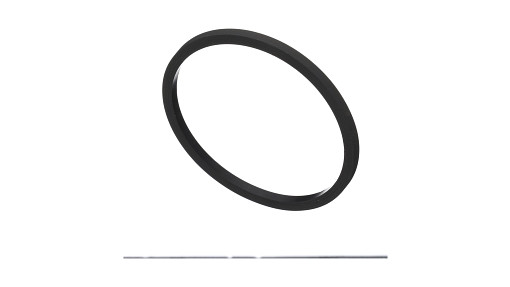

    RING Square, 5.28mm Thk x 88.01mm ID; - backup;Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G102401
  • 17
    2
    100448
    BRACKET; RING - wear;Look for cylinder assembly part number to stamped on cylinder gland or tube.;Part of seal kit P/N G102401
  • 18
    1
    G102826
    PIN; -cushion relief
  • 19
    1
    D38683
    COMPRESSION SPRING; - cushion relief
  • 20
    1
    211-14
    BALL 9/16'' Dia; - cushion relief spring
  • 21
    1
    D41359
    BOLT Hex, 1 1/4'' - 12 x 63.5mm, Gr 8; - piston and cushion relief
  • 22
    1
    G32351
    WASHER; - hardened
  • 23
    1
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPT
  • 1
    G102401
    SEAL; KIT - seal, Includes Refs. 6, 7, 8, 9, 10, 15, 16 and 17;Look for cylinder assembly part number to stamped on cylinder gland or tube.
  • 1
    G100778
    SEAL 50.8mm ID x 63mm OD x 9.5mm Thk; - piston rod, service option - severe heat or cold;Look for cylinder assembly part number to stamped on cylinder gland or tube.
