TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11FUNNEL; FRAME - mounting, 3 point hitch, use with D69194
-
22PIN; - mounting, frame to upper support arm
-
34SNAP RING #225, Ext; Ring, Snap, , spacer #225, Ext
-
42SPACER; - mounting pin
-
52PIN; - Klik
-
62BOLT Hex, 1-1/4'' - 7 x 4-1/4'', Gr 5;
-
82NUT 1 1/4''-7, G5;
-
92DECAL; - Case, on mounting frame
-
101SHAFT 44.5mm OD x 597mm L; - rocker
-
111BOLT Hex, 3/8'' - 16 x 3'', Gr 5; - hex, 3/8'' - 17 NC x 3''
-
121LOCK WASHER 3/8'';
-
131NUT 3/8''-16, G5; - hex, 3/8'' - 17 NC
-
14A2BUSHING 44.68mm ID x 57.15mm OD x 38.1mm L; - tube
-
152LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPT
-
162PIN 25.4mm OD x 129.8mm L; - mounting, tilt cylinder and strut, upper
-
172SNAP RING 23.5mm ID x 2.62mm Thk; RING - retaining
-
181STAND; STRUT - stationary, tilt cylinder opposing
-
191INSTRUCTION; CYLINDER - hydraulic, tilt, see Figure 330 and 332 for proper cylinder
-
201PIN; - mounting, strut, lower
-
201PIN ASSY.;
-
201PIN; Klik, Use with Pin 433059A1
-
201WASHER 1'' ID x 2'' OD, SAE; Use with Pin 433059A1
-
211SNAP RING 23.5mm ID x 2.62mm Thk; RING - retaining, lower strut mounting pin
-
221PIN 25.4mm OD x 95.25mm L; - mounting, tilt cylinder lower
-
23UARWASHER 1'' x 2'' x .134''; - plain, cylinder alignment
-
242SNAP RING 23.5mm ID x 2.62mm Thk; RING - retaining, lower tilt cylinder mounting pin
-
251PIN 31.75mm OD x 96.5mm L; - mounting, lift cylinder, upper
-
261SNAP RING #125, Ext; Ring, Snap, , upper lift cylinder mounting pin #125, Ext
-
271INSTRUCTION; CYLINDER - hydraulic, lift, parts list Figure 322 - 328
-
281BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; - hex, 3/8'' - 16 NC x 2-1/2''
-
291LOCK WASHER 3/8'';
-
301NUT 3/8''-16, G5; - hex, 3/8'' - 17 NC
-
311PIN; - mounting, lift cylinder, lower
-
321SPACER 33.5mm ID x 44.5mm OD x 11mm W; - lift cylinder mounting pin, lower
-
331PIN 19mm OD x 99.6mm L; - mounting, pitch cylinder at mounting frame
-
341SNAP RING #75, Ext; Ring, Snap, , pitch cylinder mounting pin #75, Ext
-
351INSTRUCTION; CYLINDER - hydraulic, pitch, parts list Figures 336 and 338
-
35A1PIN 18.9mm OD x 124mm L; - mounting, pitch
-
35B1LINCH PIN; - Klik, retaining
-
362BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; - hex, 3/8'' - 16 NC x 2-1/2''
-
372LOCK WASHER 3/8'';
-
382NUT 3/8''-16, G5; - hex, 3/8'' - 16 NC
-
392PIVOT 27mm ID x 38mm OD x 50.8mm W; TUBE - pivot, draft arm mounting pin
-
402PIN 25.4mm OD x 160.27mm L; - mounting, draft arm to mounting frame
-
411ARM; - draft, RH, Includes: Ref. 42
-
421BUSHING 25.63mm ID x 34.92mm OD x 25.4mm L; - arm
-
431ARM; - draft, LH, Includes: Ref. 44
-
441BUSHING 25.63mm ID x 34.92mm OD x 25.4mm L; - arm
-
454BOLT Hex, 3/8'' - 16 x 2'', Gr 5; - hex, 3/8'' - 16 NC x 2 ''
-
462PLATE; - sway retaining
-
472CASTING; ANCHOR - sway retaining
-
484LOCK WASHER 3/8'';
-
494NUT Sq, 3/8''-16, G2, Hvy; - square, 3/8'' - 16 NC
Select All
Select
Ref.
1Qty
1Availability
Part #
D67337Description
FUNNEL; FRAME - mounting, 3 point hitch, use with D69194Img
Alts
Select
Ref.
2Qty
2Availability
Part #
D54957Description
PIN; - mounting, frame to upper support armImg
Alts
Select
Ref.
3Qty
4Availability
Part #
F40807Description
SNAP RING #225, Ext; Ring, Snap, , spacer #225, ExtImg
Alts
Select
Ref.
6Qty
2Availability
Part #
13-2068Description
BOLT Hex, 1-1/4'' - 7 x 4-1/4'', Gr 5;Img
Alts
Select
Ref.
9Qty
2Availability
Part #
321-1438Description
DECAL; - Case, on mounting frameImg
Alts
Select
Ref.
10Qty
1Availability
Part #
D51569Description
SHAFT 44.5mm OD x 597mm L; - rockerImg
Alts
Select
Ref.
11Qty
1Availability
Part #
13-648Description
BOLT Hex, 3/8'' - 16 x 3'', Gr 5; - hex, 3/8'' - 17 NC x 3''Img
Alts
Select
Ref.
13Qty
1Availability
Part #
25-106Description
NUT 3/8''-16, G5; - hex, 3/8'' - 17 NCImg
Alts
Select
Ref.
14AQty

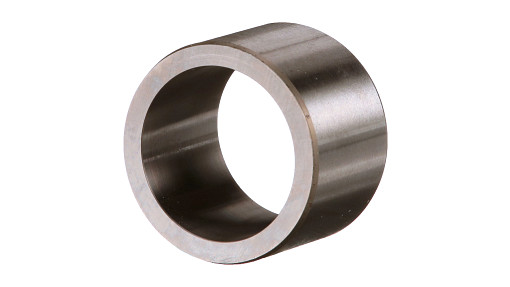

2Availability
Part #
D50146Description
BUSHING 44.68mm ID x 57.15mm OD x 38.1mm L; - tubeImg
Alts
Select
Ref.
15Qty
2Availability
Part #
219-4Description
LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8'' NPTImg
Alts
Select
Ref.
16Qty
2Availability
Part #
D51299Description
PIN 25.4mm OD x 129.8mm L; - mounting, tilt cylinder and strut, upperImg
Alts
Select
Ref.
17Qty
2Availability
Part #
D25277Description
SNAP RING 23.5mm ID x 2.62mm Thk; RING - retainingImg
Alts
Select
Ref.
18Qty
1Availability
Part #
D51276Description
STAND; STRUT - stationary, tilt cylinder opposingImg
Alts
Select
Ref.
19Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER - hydraulic, tilt, see Figure 330 and 332 for proper cylinderImg
Alts
Select
Ref.
20Qty
1Availability
Part #
D33805Description
PIN; Klik, Use with Pin 433059A1Img
Alts
Select
Ref.
20Qty

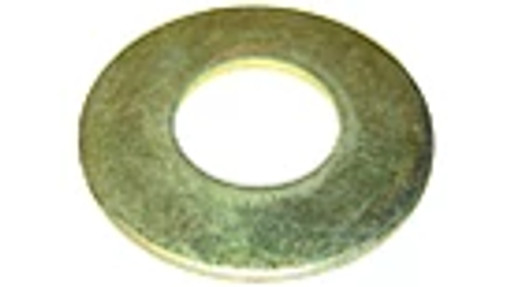

1Availability
Part #
495-11106Description
WASHER 1'' ID x 2'' OD, SAE; Use with Pin 433059A1Img
Alts
Select
Ref.
21Qty
1Availability
Part #
D25277Description
SNAP RING 23.5mm ID x 2.62mm Thk; RING - retaining, lower strut mounting pinImg
Alts
Select
Ref.
22Qty
1Availability
Part #
D30609Description
PIN 25.4mm OD x 95.25mm L; - mounting, tilt cylinder lowerImg
Alts
Select
Ref.
23Qty
UARAvailability
Part #
195-53Description
WASHER 1'' x 2'' x .134''; - plain, cylinder alignmentImg
Alts
Select
Ref.
24Qty
2Availability
Part #
D25277Description
SNAP RING 23.5mm ID x 2.62mm Thk; RING - retaining, lower tilt cylinder mounting pinImg
Alts
Select
Ref.
25Qty
1Availability
Part #
D51302Description
PIN 31.75mm OD x 96.5mm L; - mounting, lift cylinder, upperImg
Alts
Select
Ref.
26Qty
1Availability
Part #
D26918Description
SNAP RING #125, Ext; Ring, Snap, , upper lift cylinder mounting pin #125, ExtImg
Alts
Select
Ref.
27Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER - hydraulic, lift, parts list Figure 322 - 328Img
Alts
Select
Ref.
28Qty
1Availability
Part #
13-640Description
BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; - hex, 3/8'' - 16 NC x 2-1/2''Img
Alts
Select
Ref.
30Qty
1Availability
Part #
25-106Description
NUT 3/8''-16, G5; - hex, 3/8'' - 17 NCImg
Alts
Select
Ref.
31Qty
1Availability
Part #
D51695Description
PIN; - mounting, lift cylinder, lowerImg
Alts
Select
Ref.
32Qty
1Availability
Part #
D51692Description
SPACER 33.5mm ID x 44.5mm OD x 11mm W; - lift cylinder mounting pin, lowerImg
Alts
Select
Ref.
33Qty
1Availability
Part #
D51294Description
PIN 19mm OD x 99.6mm L; - mounting, pitch cylinder at mounting frameImg
Alts
Select
Ref.
34Qty
1Availability
Part #
T25683Description
SNAP RING #75, Ext; Ring, Snap, , pitch cylinder mounting pin #75, ExtImg
Alts
Select
Ref.
35Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER - hydraulic, pitch, parts list Figures 336 and 338Img
Alts
Select
Ref.
35AQty
1Availability
Part #
G16735Description
PIN 18.9mm OD x 124mm L; - mounting, pitchImg
Alts
Select
Ref.
36Qty
2Availability
Part #
13-640Description
BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; - hex, 3/8'' - 16 NC x 2-1/2''Img
Alts
Select
Ref.
38Qty
2Availability
Part #
25-106Description
NUT 3/8''-16, G5; - hex, 3/8'' - 16 NCImg
Alts
Select
Ref.
39Qty
2Availability
Part #
D51588Description
PIVOT 27mm ID x 38mm OD x 50.8mm W; TUBE - pivot, draft arm mounting pinImg
Alts
Select
Ref.
40Qty
2Availability
Part #
D50724Description
PIN 25.4mm OD x 160.27mm L; - mounting, draft arm to mounting frameImg
Alts
Select
Ref.
41Qty
1Availability
Part #
D51339Description
ARM; - draft, RH, Includes: Ref. 42Img
Alts
Select
Ref.
42Qty

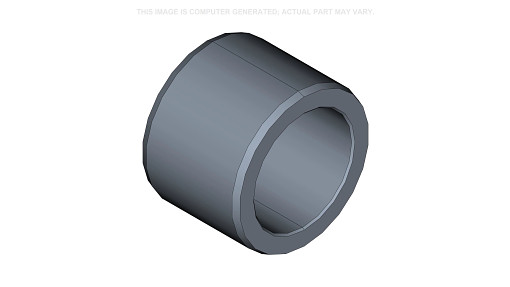

1Availability
Part #
D51608Description
BUSHING 25.63mm ID x 34.92mm OD x 25.4mm L; - armImg
Alts
Select
Ref.
43Qty
1Availability
Part #
D51340Description
ARM; - draft, LH, Includes: Ref. 44Img
Alts
Select
Ref.
44Qty
1Availability
Part #
D51608Description
BUSHING 25.63mm ID x 34.92mm OD x 25.4mm L; - armImg
Alts
Select
Ref.
45Qty
4Availability
Part #
413-632Description
BOLT Hex, 3/8'' - 16 x 2'', Gr 5; - hex, 3/8'' - 16 NC x 2 ''Img
Alts
Select
Ref.
47Qty
2Availability
Part #
D51722Description
CASTING; ANCHOR - sway retainingImg
Alts
Select
Ref.
49Qty
4Availability
Part #
25-286Description
NUT Sq, 3/8''-16, G2, Hvy; - square, 3/8'' - 16 NCImg
Alts
