D100XR - CASE BACKHOE (01... 00 - COMPLETE MACHINE 7-102 - MOUNTING FRAME AN...
7-102 - MOUNTING FRAME AND SEAT, TO ADAPT 1700 UNI-LOADER BACKHOE SEAT TO 1845 UNI-LOADER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D76847
    ADAPTER; FRAME - backhoe mounting
  • 2
    2
    T40685
    PIN; - Frame attachment
  • 3
    2
    T40222
    SPLIT PIN/SAFETY PIN; PIN - hair
  • 4
    2
    132-159
    COTTER PIN 1/4'' x 3''; Pin, Split (Cotter), 1/4'' x 3''
  • 5
    1
    D71641
    HOOK; - backhoe, left-hand
  • 6
    1
    D71643
    HOOK; - backhoe, right-hand
  • 7
    12
    413-828
    BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 5;
  • 8
    4
    13-836
    BOLT Hex, 1/2'' - 13 x 2-1/4'', Gr 5; - hex, 1/2 NC x 2-1/4 inch

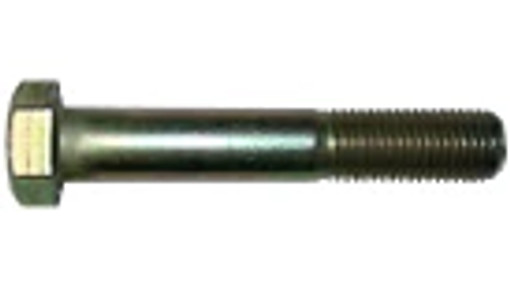

  • 9
    2
    413-848
    BOLT Hex, 1/2'' - 13 x 3'', Gr 5; - hex, 1/2 NC x 3 inch
  • 10
    12
    R24323
    WASHER; - flat, hardened
  • 11
    16
    80679
    LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
  • 12
    16
    425-108
    NUT 1/2'' - 13, Gr 5; NUT, , Hex 1/2''-13, G5
  • 13
    1
    D70531
    TIE-ROD; BRACE - right-hand hook
  • 14
    1
    D70532
    TIE-ROD; BRACE - left-hand hook
  • 15
    1
    T40691
    SEAT; FRAME - backhoe seat
  • 16
    1
    T40366
    SEAT; - parts list Figure 7-90
  • 17
    2
    D68960
    STOP; STRUT - retaining, lift cylinders
  • 18
    4
    D63534
    PIN; - stop

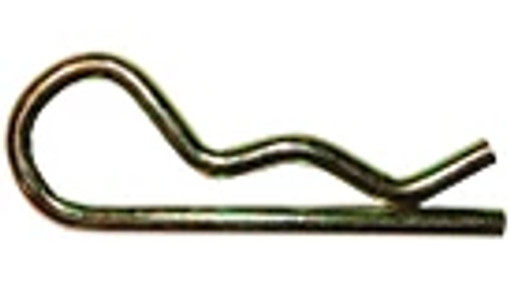

  • 19
    8
    136-159
    HAIR PIN COTTER Int, 3/16 x .080''; PIN, SPLIT (COTTER), Int, 3/16 x .080''
