Ref.
Qty
Part #
Alts
Description
-
11LOCK VALVE; VALVE - backhoe control, parts list Figures 9-16 and 9-18
-
21ELBOW 90 Degree Elbow, 1-5/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, 1-5/16-12 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 2A
-
2A1O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
-
31ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 4
-
41O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
-
51HYD CONNECTOR 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 6
-
61O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
-
71TUBE 1'' OD x 6.78, 16'' L; - return
-
81HOSE; - 50 inch (1270 mm) long
-
91QUICK FEMALE COUPLING; COUPLING - quick disconnect, female, parts list Figure 9-22;Ref:#9A D39924 Dust Cap available
-
101BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5;
-
111WASHER 0.406'' ID x 0.812'' OD x 0.065'' W; (Flat, 13/32 x 13/16 x 1/16'') 3/8'', SAE
-
121LOCK WASHER 3/8'';
-
131CLAMP; - return tube
-
141TUBE ASSY. 0.75'' OD; TUBE - supply
-
151TUBE 0.75'' OD x 15.83, 5.6'' L; - return
-
161BOLT Hex, 3/8'' - 16 x 1-1/4'', Gr 5; - hex, 3/8 NC x 1-1/4 inch
-
171LOCK WASHER 3/8'';
-
181CLAMP 10,3mm ID x 77,7mm L; - tubes from inlet/outlet section
-
191BUSHING; SPACER - clamp
-
201HOSE; - 50 inch (1270 mm) long
-
211QUICK MALE COUPLING; COUPLING - quick disconnect, male, parts list Figure 9-22
Select All
Select
Ref.
1Qty
1Availability
Part #
H528844Description
LOCK VALVE; VALVE - backhoe control, parts list Figures 9-16 and 9-18Img
Alts
Select
Ref.
2Qty
1Availability
Part #
218-5164Description
ELBOW 90 Degree Elbow, 1-5/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, 1-5/16-12 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 2AImg
Alts
Select
Ref.
2AQty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' ThkImg
Alts
Select
Ref.
3Qty
1Availability
Part #
218-5123Description
ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; - 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 4Img
Alts
Select
Ref.
4Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' ThkImg
Alts
Select
Ref.
5Qty
1Availability
Part #
218-5065Description
HYD CONNECTOR 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 6Img
Alts
Select
Ref.
6Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' ThkImg
Alts
Select
Ref.
7Qty
1Availability
Part #
D76102Description
TUBE 1'' OD x 6.78, 16'' L; - returnImg
Alts
Select
Ref.
9Qty
1Availability
Part #
D52800Description
QUICK FEMALE COUPLING; COUPLING - quick disconnect, female, parts list Figure 9-22;Ref:#9A D39924 Dust Cap availableImg
Alts
Select
Ref.
10Qty
1Availability
Part #
113-205Description
BOLT Hex, 3/8'' - 16 x 5/8'', Gr 5;Img
Alts
Select
Ref.
11Qty
1Availability
Part #
495-11041Description
WASHER 0.406'' ID x 0.812'' OD x 0.065'' W; (Flat, 13/32 x 13/16 x 1/16'') 3/8'', SAEImg
Alts
Select
Ref.
14Qty
1Availability
Part #
D76536Description
TUBE ASSY. 0.75'' OD; TUBE - supplyImg
Alts
Select
Ref.
15Qty
1Availability
Part #
D76759Description
TUBE 0.75'' OD x 15.83, 5.6'' L; - returnImg
Alts
Select
Ref.
16Qty
1Availability
Part #
413-620Description
BOLT Hex, 3/8'' - 16 x 1-1/4'', Gr 5; - hex, 3/8 NC x 1-1/4 inchImg
Alts
Select
Ref.
18Qty
1Availability
Part #
D40236Description

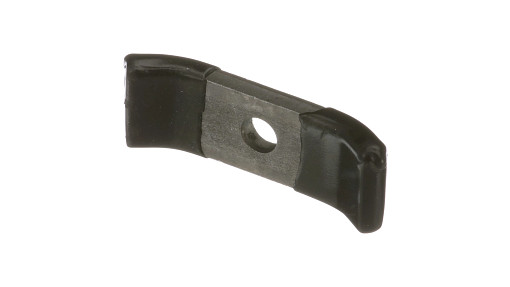

CLAMP 10,3mm ID x 77,7mm L; - tubes from inlet/outlet sectionImg
Alts
Select
Ref.
21Qty
1Availability
Part #
D52694Description
QUICK MALE COUPLING; COUPLING - quick disconnect, male, parts list Figure 9-22Img
Alts
