016 - BACKHOE BUCKETS, OPTIONAL TYPES, BELLHOLE BUCKETS, MACHINERY ITEM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    BUCKET; - backhoe, bellhole (12 inch), Includes: Ref. 2 - 4
  • 2
    1
    KNIFE; BLADE - cutting
  • 3
    2
    BUSHING 44.68mm ID x 57.15mm OD x 19.05mm L; - bucket, at dipper arm
  • 4
    2
    BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole
  • 1
    1
    BUCKET; - backhoe, bellhole (16 inch), Includes: Ref. 2 - 4
  • 2
    1
    CUTTING EDGE; BLADE - cutting
  • 3
    2
    BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm
  • 4
    2
    BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole
  • 1
    1
    BUCKET; - backhoe, bellhole (30 inch), Includes: Ref. 2 - 4
  • 2
    1
    EDGE; BLADE - cutting
  • 3
    2
    BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm
  • 4
    2
    BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole
  • 5
    1
    BUCKET; - backhoe, combination bellhole and graveyard (36 inch), combination bellhole & graveyard bucket (machinery item, Includes: Ref. 6 - 8
  • 6
    1
    NO LONGER SERVICED; BLADE - cutting, combination bellho,e & graveyard bucket (machinery item)
  • 7
    2
    BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm, combination bellhole & gravyard bucket (machinery item)
  • 8
    2
    BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole, combination bellhole & gravyard bucket (machinery item)
  • 9
    UAR
    BUCKET TOOTH SHANK; SHANK - tooth (Used on all backhoe buckets except D41550 bell hole bucket)
  • 9
    UAR
    SUPPORT; SHANK - tooth (Used on D41550 bell hole bucket),bucket teeth (standard)
  • 10
    UAR
    TOOTH; POINT - tooth (H & L Steel Company), bucket teeth (standard)
  • 10
    UAR
    TOOTH; POINT - tooth (American Steel Company), bucket teeth (standard)
  • 11
    UAR
    TOOTH; POINT - tooth (H & L Steel Company), bucket teeth (standard)
  • 11
    UAR
    TOOTH; POINT - tooth (American Steel Company), bucket teeth (standard)
  • 12
    UAR
    INSTRUCTION; SHANK - tooth (No longer available), bucket teeth (service option)
  • 13
    UAR
    TOOTH; POINT - tooth, bucket teeth (service option)
  • 14
    UAR
    BUCKET TOOTH KEY; FLEX PIN - point, bucket teeth (service option)
Select All

Select

Ref.

1

Qty

1

Availability

Part #

D41547

Description

BUCKET; - backhoe, bellhole (12 inch), Includes: Ref. 2 - 4


Alts

Select

Ref.

2

Qty

1

Availability

Part #

D37490

Description

KNIFE; BLADE - cutting


Alts

Select

Ref.

3

Qty

2

Availability

Part #

D40243

Description

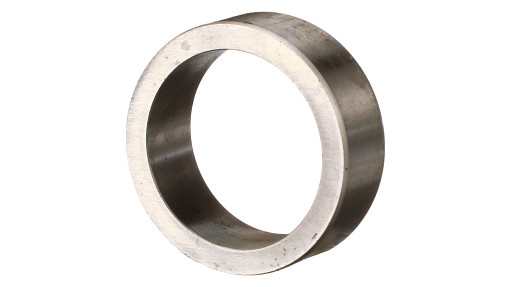

BUSHING 44.68mm ID x 57.15mm OD x 19.05mm L; - bucket, at dipper arm


Alts

Select

Ref.

4

Qty

2

Availability

Part #

D30933

Description

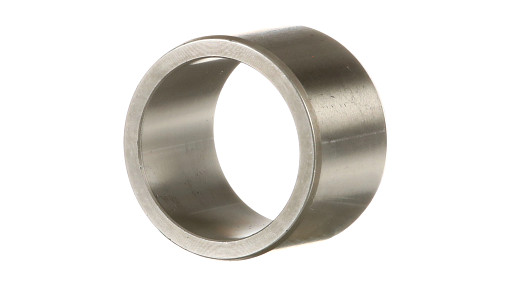

BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole


Alts

Select

Ref.

1

Qty

1

Availability

Part #

D41548

Description

BUCKET; - backhoe, bellhole (16 inch), Includes: Ref. 2 - 4


Alts

Select

Ref.

2

Qty

1

Availability

Part #

D37518

Description

CUTTING EDGE; BLADE - cutting


Alts

Select

Ref.

3

Qty

2

Availability

Part #

D37495

Description

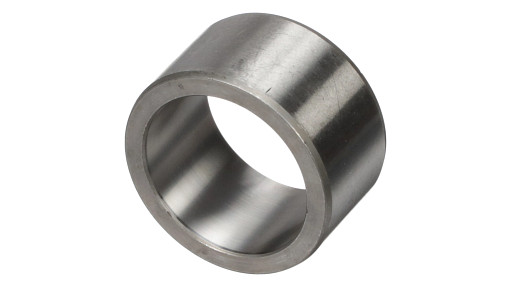

BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm


Alts

Select

Ref.

4

Qty

2

Availability

Part #

D30933

Description

BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole


Alts

Select

Ref.

1

Qty

1

Availability

Part #

D41549

Description

BUCKET; - backhoe, bellhole (30 inch), Includes: Ref. 2 - 4


Alts

Select

Ref.

2

Qty

1

Availability

Part #

D37515

Description

EDGE; BLADE - cutting


Alts

Select

Ref.

3

Qty

2

Availability

Part #

D37495

Description

BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm


Alts

Select

Ref.

4

Qty

2

Availability

Part #

D30933

Description

BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole


Alts

Select

Ref.

5

Qty

1

Availability

Part #

D41550

Description

BUCKET; - backhoe, combination bellhole and graveyard (36 inch), combination bellhole & graveyard bucket (machinery item, Includes: Ref. 6 - 8


Alts

Select

Ref.

6

Qty

1

Availability

Part #

NLS

Description

NO LONGER SERVICED; BLADE - cutting, combination bellho,e & graveyard bucket (machinery item)


Alts

Select

Ref.

7

Qty

2

Availability

Part #

D37495

Description

BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm, combination bellhole & gravyard bucket (machinery item)


Alts

Select

Ref.

8

Qty

2

Availability

Part #

D30933

Description

BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, bucket link pin hole, combination bellhole & gravyard bucket (machinery item)


Alts

Select

Ref.

9

Qty

UAR

Availability

Part #

D58499

Description

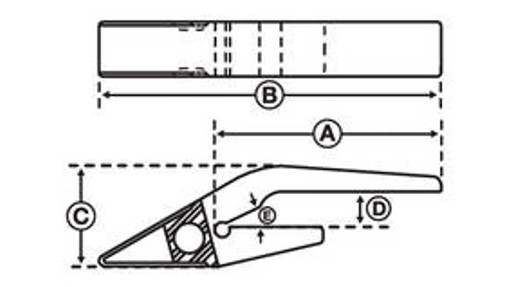

BUCKET TOOTH SHANK; SHANK - tooth (Used on all backhoe buckets except D41550 bell hole bucket)


Alts

Select

Ref.

9

Qty

UAR

Availability

Part #

D26368

Description

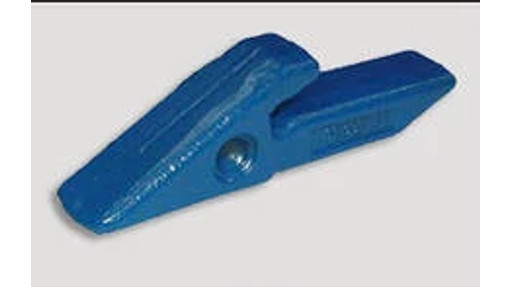

SUPPORT; SHANK - tooth (Used on D41550 bell hole bucket),bucket teeth (standard)


Alts

Select

Ref.

10

Qty

UAR

Availability

Part #

D58576

Description

TOOTH; POINT - tooth (H & L Steel Company), bucket teeth (standard)


Alts

Select

Ref.

10

Qty

UAR

Availability

Part #

D58577

Description

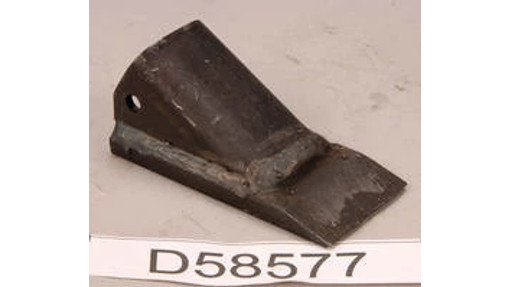

TOOTH; POINT - tooth (American Steel Company), bucket teeth (standard)


Alts

Select

Ref.

11

Qty

UAR

Availability

Part #

D58592

Description

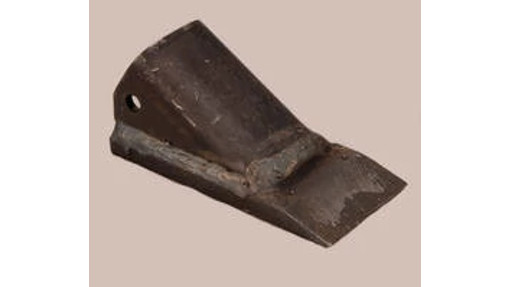

TOOTH; POINT - tooth (H & L Steel Company), bucket teeth (standard)


Alts

Select

Ref.

11

Qty

UAR

Availability

Part #

D58593

Description

TOOTH; POINT - tooth (American Steel Company), bucket teeth (standard)


Alts

Select

Ref.

12

Qty

UAR

Availability

Part #

REF

Description

INSTRUCTION; SHANK - tooth (No longer available), bucket teeth (service option)


Alts

Select

Ref.

13

Qty

UAR

Availability

Part #

D39093

Description

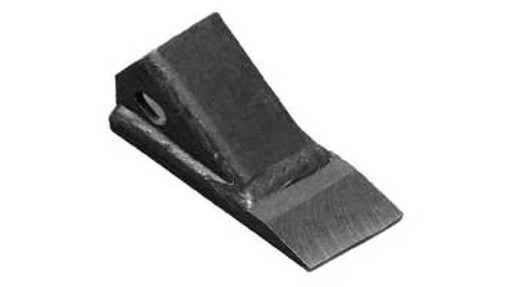

TOOTH; POINT - tooth, bucket teeth (service option)


Alts

Select

Ref.

14

Qty

UAR

Availability

Part #

D39094

Description

BUCKET TOOTH KEY; FLEX PIN - point, bucket teeth (service option)


Alts
