340 - G33128 3-POINT HITCH PITCH CYLINDER, 2-1/2'' DIA. CYLINDER W/7''STROKE W/ONE PIECE PISTON
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    G33128
    JACK BODY; CYLINDER ASSY. - pitch, Includes: Ref. 2 - 19
  • 2
    1
    G33129
    TUBE 14.69'' L; ASSY. - cylinder body, Includes: Ref. 3 and 4
  • 3
    1
    G32321
    BUSHING 19.04mm ID x 31.75mm OD x 16.66mm L; - tube (Self-aligning)
  • 4
    2
    A21145
    SNAP RING 1.25, Int, #125; Ring, Snap, 1.25'', Int, #125, bushing
  • 1
    G33578
    GLAND; ASSY., Includes: Ref. 5 - 10
  • 5
    1
    NSS
    NOT SOLD SEPARAT; GLAND
  • 6
    1
    D95141

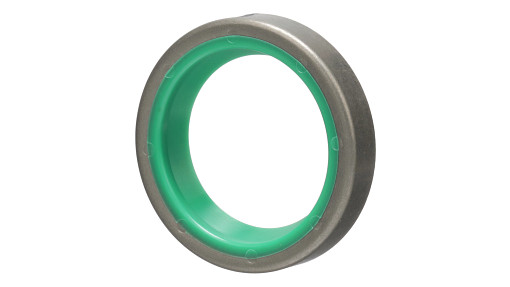

    WIPER SEAL 31.75mm ID x 44.45mm OD x 7.92mm W; WIPER - piston rod, outer (1-1/4 x 1-3/4 x 5/16'');Part of seal kit P/N G33141
  • 7
    1
    D36968

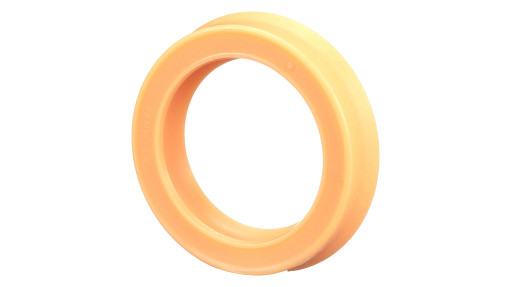

    SEAL 31.72mm ID x 44.58mm OD x 10.69mm Thk; - piston rod (1-1/4 x 1-3/4 x 13/32'');Part of seal kit P/N G33141
  • 8
    1
    D27705
    WIPER; - piston rod, inner;Part of seal kit P/N G33141
  • 9
    1
    G32129

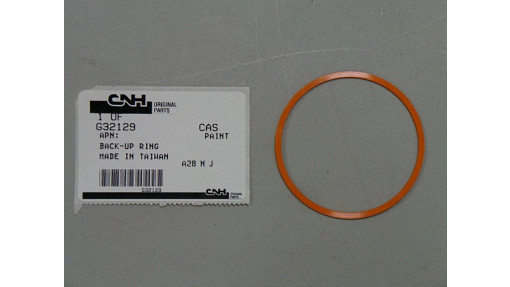

    BACK-UP RING 63.25mm ID x 69.35mm OD x 1.4mm Thk; - gland ''O'' ring back-up;Part of seal kit P/N G33141
  • 10
    1
    A28318
    O-RING 0.139'' Thk x 2.484'' ID, -230, Cl 5, 75 Duro; ''O'' RING - gland (2-1/2 x 2-3/4 x 1/8'');Part of seal kit P/N G33141
  • 11
    1
    187-1031
    SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - gland lock (#8-32 x 1/4'' self-tapping)
  • 12
    1
    G33134
    ROD; ASSY. - piston (1-1/4'' dia.)
  • 13
    1
    G32321
    BUSHING 19.04mm ID x 31.75mm OD x 16.66mm L; - piston rod (Self-aligning)
  • 14
    2
    A21145
    SNAP RING 1.25, Int, #125; Ring, Snap, 1.25'', Int, #125, bushing
  • 15
    1
    G33138
    PISTON 62.94mm Bore, 31.85mm Rod, 25.4mm W;
  • 16
    1
    G33139
    RING; - wear, piston;Part of seal kit P/N G33141
  • 17
    1
    F62076
    O-RING 0.139'' Thk x 1.984'' ID, -226, Cl 5, 75 Duro; ''O'' RING -piston (2 x 2-1/4 x 1/8'');Part of seal kit P/N G33141
  • 18
    1
    G33140
    RING 59.68mm ID x 64.26mm OD x 3.94mm Thk; - seal, piston;Part of seal kit P/N G33141
  • 19
    1
    28-1232
    BOLT Hex, 3/4'' - 16 x 2'', Gr 8; Piston Hex, 3/4-16 x 2'', G8, Full Thd
  • 1
    G33141
    KIT; SEAL KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10, 16, 17 and 18
