58 - CONTROL TOWER, 850C CRAWLER ONLY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D84083
    SPARE PART; CONTROL TOWER
  • 2
    4
    13-512

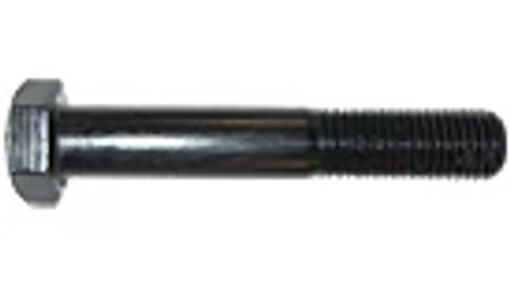

    BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
  • 3
    4
    92-5
    LOCK WASHER 5/16'';
  • 4
    1
    D92397
    COVER ASSY; COVER - console, used without extendable dipper
  • 4A
    1
    D92409
    COVER; - console, used with extendable dipper
  • 5
    3
    113-66
    BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5, Full Thd;
  • 6
    3
    195-133
    WASHER 5/16'' x 3/4'' x .065''; - flat, 1/4'', black
  • 7
    1
    D92241
    PANEL; - rear
  • 8
    1
    R46425
    PANEL; - right-hand closure
  • 9
    1
    R46424
    PANEL; - left-hand closure
  • 10
    8
    13-616
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5, Full Thd;
  • 11
    8
    92-6
    LOCK WASHER 3/8'';
  • 12
    8
    25-106
    NUT 3/8''-16, G5; - hex, 3/8'' - 16 NC
  • 13
    2
    R46429
    STEP; PLATE - step
  • 14
    4
    13-616
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5, Full Thd;
  • 15
    4
    92-6
    LOCK WASHER 3/8'';
  • 16
    4
    25-106
    NUT 3/8''-16, G5; - hex, 3/8'' - 16 NC
  • 17
    1
    D120336
    PLATE; - backhoe, floor
  • 18
    4
    12-840
    CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 2 1/2'', Gr 2; BOLT carriage - 1/2'' - 13 NC x 2-1/2''
  • 19
    4
    R29799
    SHOCK ABSORBER; MOUNT - rubber
  • 20
    4
    B15606
    WASHER; - flat, 1/2''
  • 21
    4
    131-10
    NUT 1/2''-13, GB; NUT, LOCK, 1/2''-13, GB
