074 - D27751 BACKHOE BOOM CYL., USED ON 310G CRAWLERS & W SERIES LOADERS BEF. BACKHOE S/N 4101401 & ON
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    131-22
    LOCK NUT 1 1/4''-12, GB; NUT, LOCK, 1 1/4''-12, GB
  • 1
    D42876
    GLAND; KIT - gland packing
  • 3
    2
    D27380
    SCRAPER RING; WIPER - piston rod
  • 4
    2
    D26115
    O-RING 0.139'' Thk x 2.109'' ID, -227, Cl 5, 75 Duro; SEAL - ''O'' ring, wiper
  • 5
    1
    D28500
    RING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; - backup, rod seal
  • 6
    1
    D36971
    RING; SEAL - piston rod
  • 7
    1
    187-1031
    SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self-tapping, #8 - 32 NC x 1/4''
  • 8
    1
    D27382
    RING; - backup, gland seal
  • 9
    1
    A27507
    O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL - ''O'' ring, gland seal
  • 11
    2
    D33047

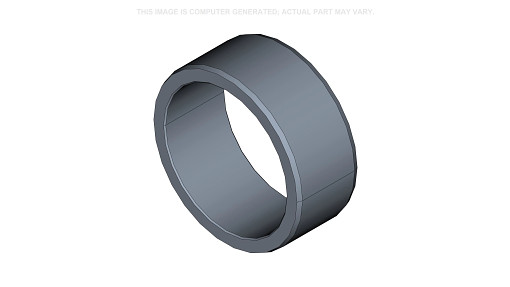

    BUSHING 44.68mm ID x 53.98mm OD x 22.23mm L; - tube
  • 12
    1
    219-55
    LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF; NIPPLE, LUBE, 90?, 1/8'' NPT x .84'' lg
  • 13
    1
    D95033
    WASHER; - special
  • 14
    1
    D28370
    PISTON; - split, nut end
  • 15
    1
    D40690
    PACKING RING; RING - bronze, packing
  • 16
    2
    D40689
    PACKING; - piston, chevron
  • 17
    1
    D28371
    PISTON; - split, eye end
  • 18
    1
    D27386
    HEAD; GLAND - packing (Uses D26115 seal) When stock is exhausted, use D45071 gland for service)
  • 1
    D45071
    GLAND; - packing
  • 19
    1
    D27762
    YOKE; ROD - piston (2'' dia.)
  • 20
    2
    D33047
    BUSHING 44.68mm ID x 53.98mm OD x 22.23mm L; - piston rod
  • 21
    1
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - straight grease (1/8'' NPT)
Select All

Select

Ref.

2

Qty

1

Availability

Part #

131-22

Description

LOCK NUT 1 1/4''-12, GB; NUT, LOCK, 1 1/4''-12, GB


Alts

Select

Ref.

Qty

1

Availability

Part #

D42876

Description

GLAND; KIT - gland packing


Alts

Select

Ref.

3

Qty

2

Availability

Part #

D27380

Description

SCRAPER RING; WIPER - piston rod


Alts

Select

Ref.

4

Qty

2

Availability

Part #

D26115

Description

O-RING 0.139'' Thk x 2.109'' ID, -227, Cl 5, 75 Duro; SEAL - ''O'' ring, wiper


Alts

Select

Ref.

5

Qty

1

Availability

Part #

D28500

Description

RING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; - backup, rod seal


Alts

Select

Ref.

6

Qty

1

Availability

Part #

D36971

Description

RING; SEAL - piston rod


Alts

Select

Ref.

7

Qty

1

Availability

Part #

187-1031

Description

SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self-tapping, #8 - 32 NC x 1/4''


Alts

Select

Ref.

8

Qty

1

Availability

Part #

D27382

Description

RING; - backup, gland seal


Alts

Select

Ref.

9

Qty

1

Availability

Part #

A27507

Description

O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL - ''O'' ring, gland seal


Alts

Select

Ref.

11

Qty

2

Availability

Part #

D33047

Description

BUSHING 44.68mm ID x 53.98mm OD x 22.23mm L; - tube


Alts

Select

Ref.

12

Qty

1

Availability

Part #

219-55

Description

LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF; NIPPLE, LUBE, 90?, 1/8'' NPT x .84'' lg


Alts

Select

Ref.

13

Qty

1

Availability

Part #

D95033

Description

WASHER; - special


Alts

Select

Ref.

14

Qty

1

Availability

Part #

D28370

Description

PISTON; - split, nut end


Alts

Select

Ref.

15

Qty

1

Availability

Part #

D40690

Description

PACKING RING; RING - bronze, packing


Alts

Select

Ref.

16

Qty

2

Availability

Part #

D40689

Description

PACKING; - piston, chevron


Alts

Select

Ref.

17

Qty

1

Availability

Part #

D28371

Description

PISTON; - split, eye end


Alts

Select

Ref.

18

Qty

1

Availability

Part #

D27386

Description

HEAD; GLAND - packing (Uses D26115 seal) When stock is exhausted, use D45071 gland for service)


Alts

Select

Ref.

Qty

1

Availability

Part #

D45071

Description

GLAND; - packing


Alts

Select

Ref.

19

Qty

1

Availability

Part #

D27762

Description

YOKE; ROD - piston (2'' dia.)


Alts

Select

Ref.

20

Qty

2

Availability

Part #

D33047

Description

BUSHING 44.68mm ID x 53.98mm OD x 22.23mm L; - piston rod


Alts

Select

Ref.

21

Qty

1

Availability

Part #

219-1

Description

LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - straight grease (1/8'' NPT)


Alts
