420BD - CASE WHEEL TRACTO... 00 - COMPLETE MACHINE 054 - ELECTRICAL SYSTEM -...
054 - ELECTRICAL SYSTEM - DIESEL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 4
    4
    G46096
    RETAINER; BUSHING - rubber, battery frame bolt
  • 5
    4
    95-5
    WASHER 3/8'' x 7/8'' x .083''; - plain (5/16)
  • 6
    4
    G49020
    NUT; - wing, battery frame bolts
  • 8
    1
    VT2336
    X; STRAP -
  • 9
    1
    G13098
    CABLE;
  • 11
    1
    O6362AB
    X; COVER - rubber, battery terminal
  • 12
    1
    G45017
    X; SOLENOID - starting motor (Auto-Lite #SSW-4001)
  • 16
    2
    VT3675
    X; STUD - starting motor to engine (3/8-16 NC x 1-1/2)
  • 17
    3
    92-6
    LOCK WASHER 3/8''; WASHER - med. sect. lock, 3/8''
  • 18
    3
    25-106
    NUT 3/8''-16, G5; - hex. (3/8-16 NC)
  • 20
    2
    92-6
    LOCK WASHER 3/8''; WASHER - med. sect. lock, 3/8''
  • 21
    2
    25-106
    NUT 3/8''-16, G5; - hex. (3/8-16 NC)
  • 23
    2
    14-516
    BOLT Hex, 5/16'' - 24 x 1'', Gr 5, Full Thd; HHCS - 5/16-24 NF x 1
  • 24
    2
    92-5
    LOCK WASHER 5/16''; WASHER - med. sect. lock, 5/16''
  • 25
    2
    25-115
    NUT 5/16''-24, G5; - hex (5/16''-24 NF)
  • 27
    1
    13-612

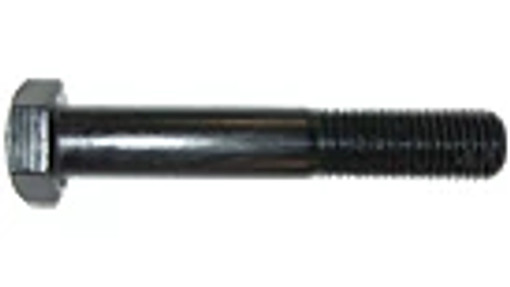

    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5, Full Thd;
  • 28
    1
    92-6
    LOCK WASHER 3/8''; WASHER - med. sect. lock, 3/8''
  • 29
    1
    95-6
    WASHER 3/8''; - plain (3/8)
  • 31
    2
    14-612
    BOLT Hex, 3/8'' - 24 x 3/4'', Gr 5, Full Thd;
  • 32
    2
    92-6
    LOCK WASHER 3/8''; WASHER - med. sect. lock, 3/8''
  • 34
    1
    G13166
    X; REGULATOR - generator voltage (12 volt) (Auto-Lite #VRT-4105)
  • 35
    1
    G13136
    IGNITION SWITCH; SWITCH - starting, w/key
