52 - 35920 HYDRAULIC LOADER LIFT CYLINDERS (1-1/4'' ROD)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    O3522CK
    X; SEAL - ''O'' ring, piston rod (Used with D23738 piston only)
  • 1
    17597
    PACKING; - piston rod
  • 1
    17598
    PACKING; - piston
  • 1
    17603
    WIPER SEAL; - wiper, piston rod
  • 1
    30630
    CARTRIDGE; WASHER - packing, piston
  • 1
    30631
    X; PISTON - cylinder (No ''O'' ring) (Use D23738, D23739, and 03522CK)
  • 4
    30634

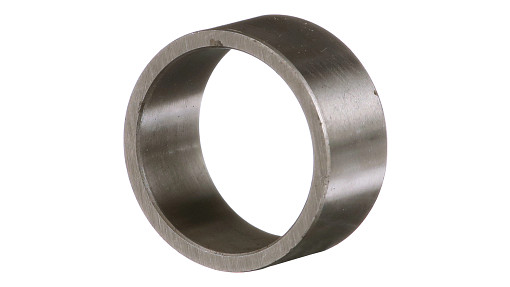

    BUSHING 32.05mm ID x 38.18mm OD x 17.6mm L; - piston rod yoke and cylinder end
  • 2
    35920
    SCREW; CYLINDER - loader lift, hydraulic (Use D20743)
  • 1
    36259
    WASHER; - piston rod packing
  • 2
    49382
    GUARD 2.244'' ID x 2 1'' OD x 0.139''; SEAL - ''O'' ring, cylinder ends to tube
  • 1
    49482
    SNAP RING 2.125'', Int, #212; Ring, Snap, , seal, piston rod 2.125'', Int, #212
  • 1
    D23738
    BLOCK; PISTON - cylinder (When replacing 30631 piston without ''O'' ring, Also order 1 - 03522CK ''O'' ring and 1 - D23739 lock nut)
  • 1
    D23739
    LOCK NUT; NUT - lock, D23738 piston only (3/4'' - 16 NF)
  • 2
    D24985
    RING; - leather backup (Used only with cylinder end or cap that has .210'' wide ''O'' ring groove) See D25493
  • 2
    D25493
    BACK-UP RING; RING - plastic backup (Used only with cylinder end or cap that has .185'' wide ''O'' ring groove) See D24985
  • 1
    D10257
    KIT; OF PARTS TO CONVERT ONE 35920 CYLINDER (1-1/4'' dia. rod) to D20743 cylinder (1-1/2'' dia. rod)
