420B - CASE WHEEL TRACTOR... 00 - COMPLETE MACHINE 18 - 39582 SPECIAL RELIEF...
18 - 39582 SPECIAL RELIEF VALVE, TERRALOAD'R AND BACKHOE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    39582
    PUMP, HYDRAULIC; PUMP - hydraulic
  • 1
    1
    71466
    SNAP RING #206, 2.190'', Int, Spiral; - ball bearing
  • 2
    1
    71429
    BEARING COVER; SHIELD - ball bearing
  • 3
    1
    18-970
    BALL BEARING; BEARING - ball, drive shaft, rear (SKF #7205 BYG)
  • 4
    1
    NLS
    NO LONGER SERVICED; SPACER - ball bearing
  • 6
    2
    NLS
    NO LONGER SERVICED; BEARING - roller (McGill #GR-22-N-1)
  • 7
    1
    72731
    SEAL; - oil, drive shaft
  • 8
    1
    71430
    TOOL; SEAT - check
  • 9
    1
    71431
    X; BALL - check (5/32'' dia. - steel)
  • 10
    1
    71432
    TOOL; RETAINER - check ball
  • 11
    1
    A27355
    O-RING 0.139'' Thk x 1.17'' ID, -217, Cl 5, 75 Duro; ''O'' RING - seal, drive shaft
  • 12
    2
    71442
    PLATE; PLATE - thrust
  • 13
    2
    71440
    X; SEAL - pocket (29/64'' long)
  • 14
    8
    71441
    X; SEAL - pocket (25/64'' long)
  • 15
    1
    39760
    SPROCKET; SHAFT - drive
  • 18
    2
    71443
    TUBE; - housing
  • 20
    1
    71433
    SPARE PART; COVER - rear
  • 21
    2
    NLS
    NO LONGER SERVICED; BEARING - roller (Mc Gill #GR-22-N-1)
  • 22
    10
    13-860
    BOLT Hex, 1/2'' - 13 x 3-3/4'', Gr 5; (45117) Hex, 1/2''-13 x 3 3/4'', G5
  • 23
    1
    219-40

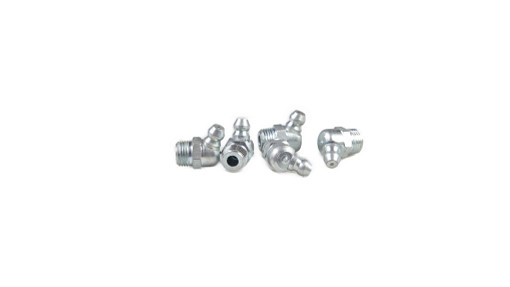

    LUBE NIPPLE 65 Degree Elbow, 1/8'' - 27 NPTF; FITTING - grease, 1/8 NP - 67-1/2 degrees (Lincoln #5300)
  • 24
    1
    D23270
    X; SEAL - ball bearing
