8-450 - TELESCOPIC DIPPER EXTENSION CYLINDER, 590SLE CGG0190001- / 590LSP CGG0200001-
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    1340969C2

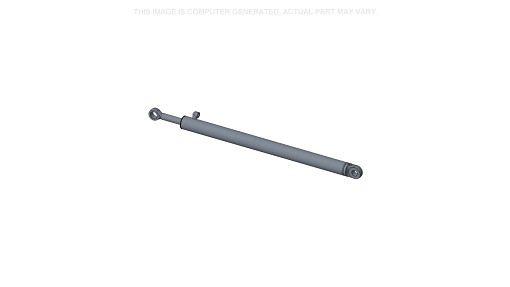

    HYDRAULIC CYLINDER Double Acting, 44.4mm Rod, 1068mm Stroke; 76 x 1068 mm, Consists of Ref 2 - 17
  • 1
    AR
    1340969C2R
    REMAN-HYD CYLINDER; Dipper Extention Cylinder - For N.A. Only
  • 1
    AR
    1340969C2C
    CORE-HYD CYLINDER; Dipper Extention Cylinder - For N.A. Only
  • 2
    1
    1340970C1
    TUBE 76.1mm Bore Dia; Tube
  • 3
    1
    G109884
    CYLINDER END CAP; GLAND
  • 4
    1
    D95143
    WIPER SEAL 44.42mm ID x 57.17mm OD x 7.92mm Thk; wiper
  • 5
    1
    G102425
    BUSHING 44.45mm ID x 47.45mm OD x 25.1mm Thk;
  • 6
    1
    NSS
    NOT SOLD SEPARAT; SEAL
  • 7
    1
    NSS
    NOT SOLD SEPARAT; SEAL
  • 8
    1
    238-5231
    O-RING 0.139'' Thk x 2.609'' ID, -231, Cl 5, 75 Duro;
  • 9
    1
    G109298

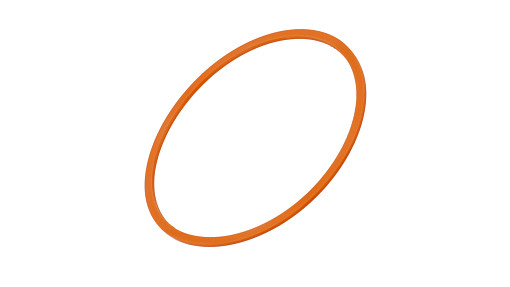

    RING 69.47mm ID x 75.57mm OD x 1.4mm Thk; backup
  • 10
    1
    276-2446
    SELF-TAP SCREW Hex Hd, #8 NC x 3/8'';
  • 11
    1
    1980296C1
    PISTON ROD 44.4mm OD; 44 mm
  • 12
    1
    G107277
    PISTON; cylinder
  • 13
    1
    G102288

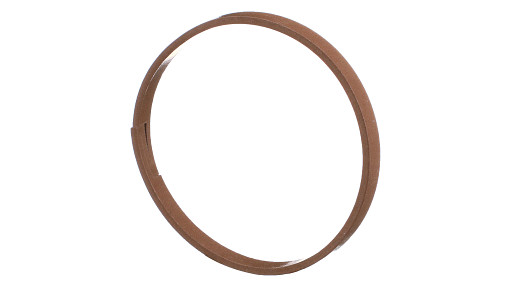

    SEAL Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk;
  • 14
    1
    G100444
    SEALING RING Square, 5.28mm Thk x 62.61mm ID; RING backup
  • 15
    1
    G100449

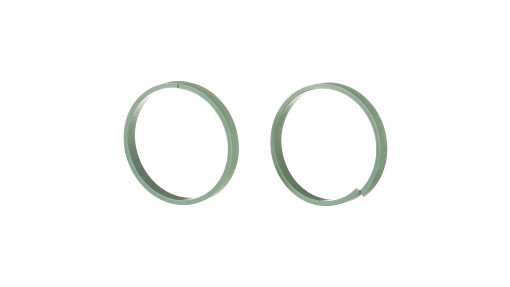

    WEAR RING Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk;
  • 16
    1
    25863R1

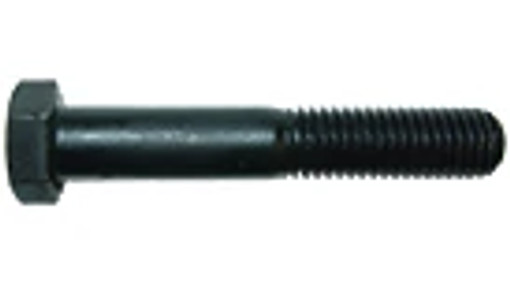

    BOLT Hex, 3/4'' - 16 x 2 1/2'', Gr 8;
  • 17
    1
    S94643
    WASHER 19.43mm ID x 38.1mm OD x 6.35mm Thk;
  • 1
    1543267C1

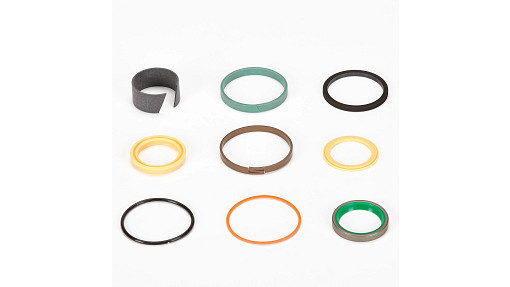

    SEAL KIT; Consists of Ref 4 - 9, 13, 14, 15
