2-032 - CYLINDER HEAD COVERS AND GASKET, 590SLE CGG0190001- / 590LSP CGG0200001- / THERMOSTAT AND HOUSING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    REF
    INSTRUCTION; HEAD ASSY., see Figure 2-034
  • 2
    1

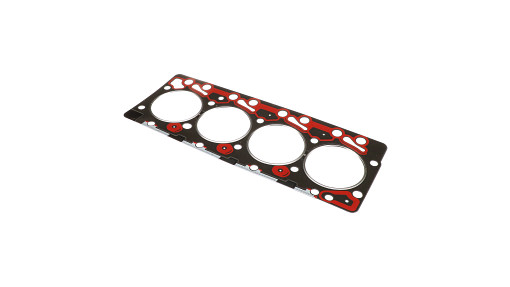

    J283333
    CYLINDER HEAD GASKET 2.32mm Thk; cylinder head, Replaces: J282999
  • 2
    1

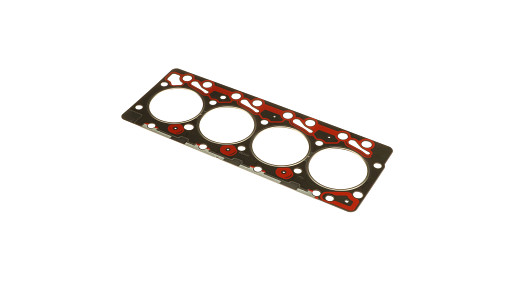

    J283336
    GASKET; cylinder head, +0.25 mm, oversize, Replaces: J283001
  • 2
    1
    J283338
    GASKET; cylinder head, + 0.50mm, oversize, Replaces: J283003
  • 3
    4
    J928404
    COVER; valve
  • 4
    4
    J930906
    GASKET; SEAL
  • 5
    4
    J935449
    ISOLATOR 10.2mm ID x 19mm OD x 10.1mm L; Replaces: J928406
  • 6
    4
    J907049
    BOLT Hex; SCREW, M8 x 21
  • 7
    1
    J908118
    BRACKET; RING lifting
  • 8
    2

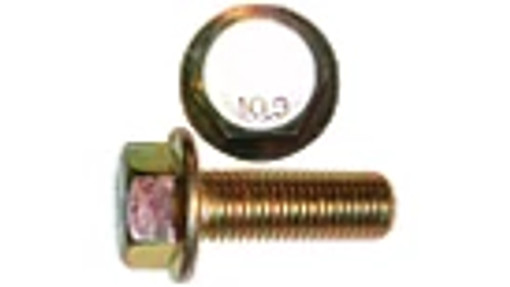

    854-12030
    BOLT Hvy Hex, M12 x 30mm, Cl 10.9;
  • 9
    1

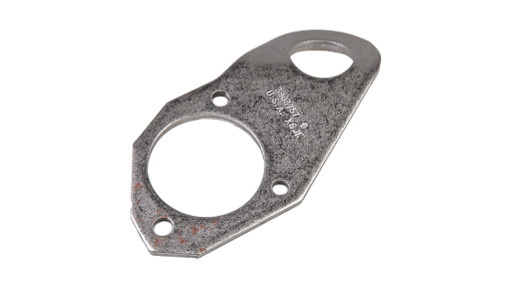

    J903757
    BRACKET; RING lifting, thermostat and housing
  • 10
    1
    J914409
    HOUSING; MANIFOLD, thermostat
  • 1

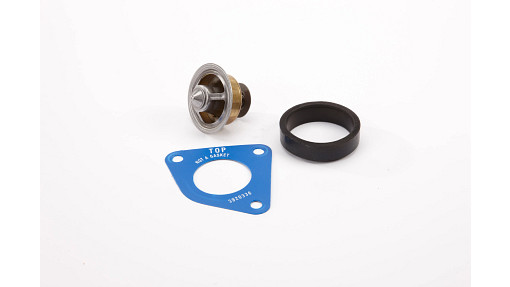

    A77736
    THERMOSTAT; THERMOSTAT, consists of: Ref. 11, 12, housing
  • 11
    1
    J923331
    GASKET; SEAL, thermostat and housing
  • 12
    1
    NSS
    NOT SOLD SEPARAT; THERMOSTAT, housing
  • 13
    2
    845-8070
    BOLT Hvy Hex, M8 x 70mm, Cl 8.8; Thermostat and housing
  • 14
    1
    845-8035
    BOLT Hvy Hex, M8 x 35mm, Cl 8.8; Thermostat and housing
  • 15
    1
    J923387
    SUPPORT; thermostat and housing
  • 16
    3

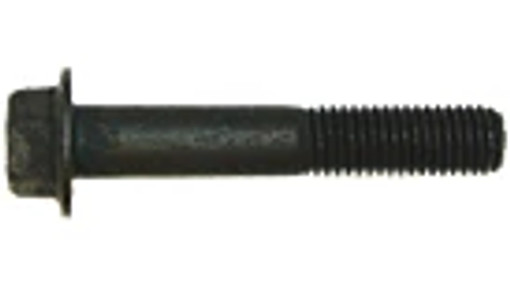

    845-8025
    BOLT Hex Flg, M8 x 25mm, Cl 8.8; Thermostat and Housing
  • 17
    1

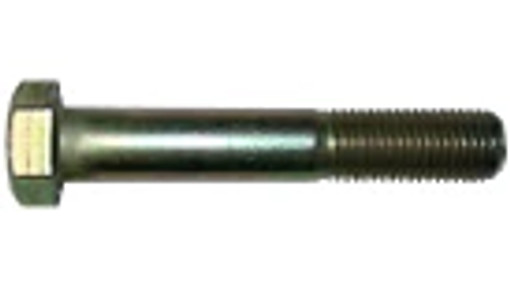

    814-10100
    BOLT Hex, M10 x 1.5 x 100mm, Cl 8.8; M10 x 100, 10.9, Thermostat and housing
  • 18
    1
    J902469
    SPACER; BUSHING, thermostat and housing
Select All

Select

Ref.

1

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; HEAD ASSY., see Figure 2-034


Alts

Select

Ref.

2

Qty

1

Availability

Part #

J283333

Description

CYLINDER HEAD GASKET 2.32mm Thk; cylinder head, Replaces: J282999


Alts

Select

Ref.

2

Qty

1

Availability

Part #

J283336

Description

GASKET; cylinder head, +0.25 mm, oversize, Replaces: J283001


Alts

Select

Ref.

2

Qty

1

Availability

Part #

J283338

Description

GASKET; cylinder head, + 0.50mm, oversize, Replaces: J283003


Alts

Select

Ref.

3

Qty

4

Availability

Part #

J928404

Description

COVER; valve


Alts

Select

Ref.

4

Qty

4

Availability

Part #

J930906

Description

GASKET; SEAL


Alts

Select

Ref.

5

Qty

4

Availability

Part #

J935449

Description

ISOLATOR 10.2mm ID x 19mm OD x 10.1mm L; Replaces: J928406


Alts

Select

Ref.

6

Qty

4

Availability

Part #

J907049

Description

BOLT Hex; SCREW, M8 x 21


Alts

Select

Ref.

7

Qty

1

Availability

Part #

J908118

Description

BRACKET; RING lifting


Alts

Select

Ref.

8

Qty

2

Availability

Part #

854-12030

Description

BOLT Hvy Hex, M12 x 30mm, Cl 10.9;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

J903757

Description

BRACKET; RING lifting, thermostat and housing


Alts

Select

Ref.

10

Qty

1

Availability

Part #

J914409

Description

HOUSING; MANIFOLD, thermostat


Alts

Select

Ref.

Qty

1

Availability

Part #

A77736

Description

THERMOSTAT; THERMOSTAT, consists of: Ref. 11, 12, housing


Alts

Select

Ref.

11

Qty

1

Availability

Part #

J923331

Description

GASKET; SEAL, thermostat and housing


Alts

Select

Ref.

12

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; THERMOSTAT, housing


Alts

Select

Ref.

13

Qty

2

Availability

Part #

845-8070

Description

BOLT Hvy Hex, M8 x 70mm, Cl 8.8; Thermostat and housing


Alts

Select

Ref.

14

Qty

1

Availability

Part #

845-8035

Description

BOLT Hvy Hex, M8 x 35mm, Cl 8.8; Thermostat and housing


Alts

Select

Ref.

15

Qty

1

Availability

Part #

J923387

Description

SUPPORT; thermostat and housing


Alts

Select

Ref.

16

Qty

3

Availability

Part #

845-8025

Description

BOLT Hex Flg, M8 x 25mm, Cl 8.8; Thermostat and Housing


Alts

Select

Ref.

17

Qty

1

Availability

Part #

814-10100

Description

BOLT Hex, M10 x 1.5 x 100mm, Cl 8.8; M10 x 100, 10.9, Thermostat and housing


Alts

Select

Ref.

18

Qty

1

Availability

Part #

J902469

Description

SPACER; BUSHING, thermostat and housing


Alts
