450CT - COMPACT TRACK LOA... 02 - ENGINE 02-07 - ENGINE - PUMP DRI...
02-07 - ENGINE - PUMP DRIVE (SPLIT PUMP CONFIGURATION)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • -
    REF
    INSTRUCTION; MODELS WITH SPLIT PUMP CONFIGURATION
  • 1
    1
    87039487
    ENGINE;
  • -
    87638777
    SERVICE KIT; Conversion Kit, Split Pump To In-Line Pump, See Fig 02-07A
  • 2
    1
    87049924
    SPACER; Used With Ref 5, 7
  • 2A
    1
    87462294
    SPACER; Used With Ref 5A, 7A
  • 3
    6
    43235
    BOLT Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd;
  • 4
    6
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 5
    1
    87053351
    BOX; Splitter, Used With Ref 2, 7
  • 5A
    1
    87462295
    BOX; Splitter, Used With Ref 2A, 7A
  • 6
    2
    863-10070
    HEX SOC SCREW M10 x 70mm, Cl 12.9;
  • 7
    1
    87462626
    SEAL; Used With Ref 2, 5, Replaces 9790499, See Service Bulletin NSL SB 006 06
  • 7A
    1
    87462383

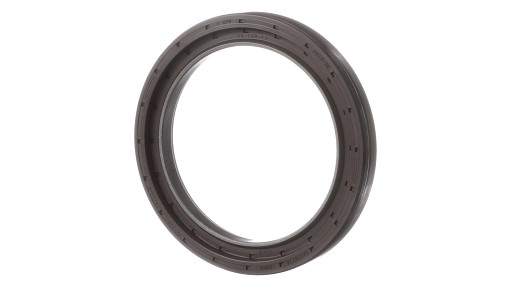

    SEAL; Used With Ref 2A, 5A, See Service Bulletin NSL SB 006 06
  • 8
    2
    9701486
    GEAR; 29T
  • 9
    1
    87051053
    GEAR; Pump Drive
  • 10
    4
    271877
    SNAP RING #93, Ext;
  • 11
    8
    718523

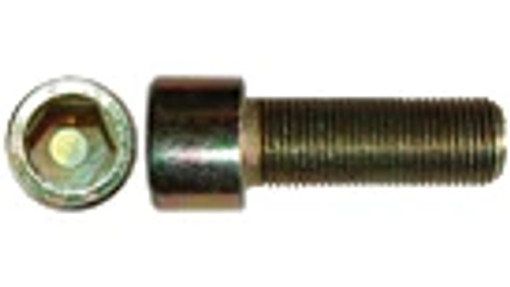

    SCREW Hex Soc Hd, M10 x 40, 8.8;
  • 12
    1
    87053352
    COVER; Splitter Box
  • 13
    1
    46566
    BREATHER; Air Vent
  • 14
    1
    88873

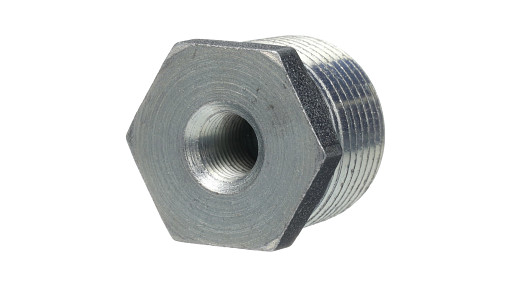

    BUSHING Hex, 3/4'' to 1/8''; 3/4 To 1/8
  • 15
    1
    217-1020

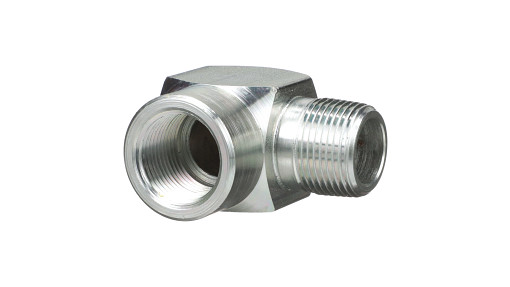

    90 ELBOW 3/4'' - 14 Female x 3/4'' - 14 Male;
  • 16
    1
    9635238

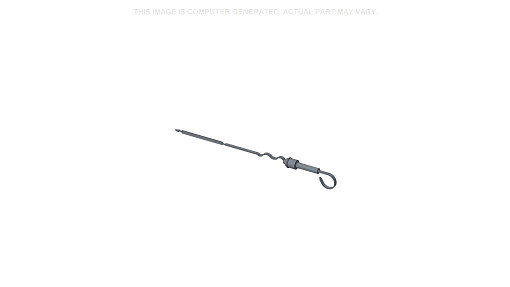

    INDICATOR; Oil Indicator, If Used
  • 17
    1
    86606076
    TUBE 9.525 mm OD x 262 mm L; Dipstick, If Used
  • 18
    1
    9617020
    PLUG 1/4'' - 18 x 0.48'';
  • 19
    10
    120073
    BOLT Hex, M10 x 86.58mm, Cl 8.8;
  • 20
    10
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 21
    1
    87462692
    BRACKET; Oil Dipstick Bracket, If Used
  • 22
    1
    43138
    BOLT Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd;
  • 23
    1
    140017

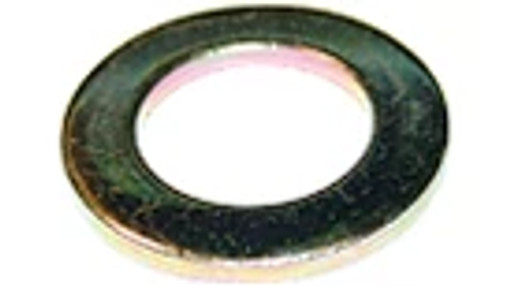

    WASHER M10 x 20mm OD x 2mm Thk;
  • 24
    1
    86639010
    CLAMP 9.5mm, Coat, 13.5mm Bolt Hole, P Type;
  • 25
    1
    43435
    FLANGE NUT Hex, M10 x 1.5;
