17-04 - HANDLING CLAMSHELL (550 L-1.08 M, 800 L-1.22 M)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    S47419
    SHELL; 550L - 1.08m
  • 1
    2
    C144603
    SHELL; 800L -1.22m
  • 2
    4
    C27855
    SHAFT LOCK; 800L -1.22m
  • 3
    2
    H728187
    WELDABLE LUG; 800L -1.22m
  • 4
    2
    J728188
    WELDABLE LUG; 800L -1.22m
  • 5
    2
    M29129
    SHAFT LOCK; 800L -1.22m
  • 6
    2
    W24216
    WELDABLE LUG; 800L -1.22m
  • 7
    2
    P21771
    STIFFENER; 550L - 1.08m
  • 7
    2
    M21746
    EDGE; 800L - 1.22m
  • 8
    2
    N21770
    STIFFENER; 550L - 1.08m
  • 8
    2
    N21747
    EDGE; 800L - 1.22m
  • 9
    2
    R26626
    BLADE; 550L - 1.08m
  • 9
    2
    Q25015
    BLADE; 800L - 1.22m
  • 10
    2
    U30976
    PIN; Dia. 40, 800L - 1.22m
  • 11
    4
    J45801
    LUBE NIPPLE M8 x 1.25; 800L - 1.22m
  • 12
    2
    S30859
    SCREW; 800L - 1.22m
  • 13
    2
    H34714
    WASHER; W14, 800L - 1.22m
  • 14
    4
    G30918
    PIN; Dia. 30, 800L - 1.22m
  • 15
    4
    W35532
    SPLIT PIN/SAFETY PIN; 800L - 1.22m
  • 16
    1
    S844668
    LINKAGE YOKE; 800L - 1.22m
  • 17
    4
    T28767
    BUSHING 40.2mm ID x 55mm OD x 45mm L; 800L - 1.22m
  • 18
    3
    J45801
    LUBE NIPPLE M8 x 1.25; 800L - 1.22m
  • 19
    2
    W1044680
    ARM; 800L - 1.22m
  • 20
    2
    C50073
    SHAFT LOCK; 800L - 1.22m
  • 21
    4
    U28860
    BUSHING; 30 x 45 x 39, 800L - 1.22m
  • 22
    2
    G30918
    PIN; Dia. 30, 800L - 1.22m
  • 23
    2
    W36015
    SPLIT PIN/SAFETY PIN; 800L - 1.22m
  • 24
    4
    J45801
    LUBE NIPPLE M8 x 1.25; 800L - 1.22m
  • 25
    2
    L2337592
    UNION; 800L - 1.22m
  • 26
    1
    S945293
    WASHER, SEALING; SEAL WASHER 18.5 x 2 3.9 x 1.5, 800L - 1.22m
  • 27
    1
    G45523
    WASHER; 60 x 109 x 13, 800L - 1.22m
  • 28
    1
    N52406
    NUT; 800L - 1.22m
  • 29
    1
    M35799
    SPLIT PIN/SAFETY PIN; 800L - 1.22m
  • 30
    2

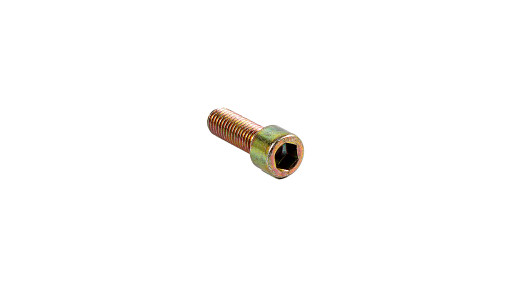

    14422121
    HEX SOC SCREW M12 x 35mm, Cl 8.8, Full Thd; 800L - 1.22m
  • 31
    1
    P51855
    PROTECTOR; 800L - 1.22m
  • 32
    2
    NLS
    NO LONGER SERVICED; W18, 800L - 1.22m
  • 33
    2
    E433830
    BOLT Hex, M18 x 40; 800L - 1.22m
  • 34
    2
    C34180
    NUT; M18, 800L - 1.22m
  • 35
    2
    U5137551
    UNION; 800L - 1.22m
  • 1
    S945293
    WASHER, SEALING; SEAL WASHER 18.5 x 23.9 x 1.5, 800L - 1.22m
  • 36
    2
    G1737081
    ANGLE; 800L - 1.22m
