2-04 - HYDRAULIC CIRCUIT (BOOM 6.50M)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    REF
    INSTRUCTION; CYLINDER, See Figure 2-22, 688 ONLY
  • 2
    28
    C4024266
    CLAMP; half, 688 ONLY
  • 3
    18
    L1130483
    O-RING; 688 ONLY
  • 4
    56
    H732994
    SCREW Hex Soc Hd, M10 x 50, 10.9; 688 ONLY
  • 5
    78

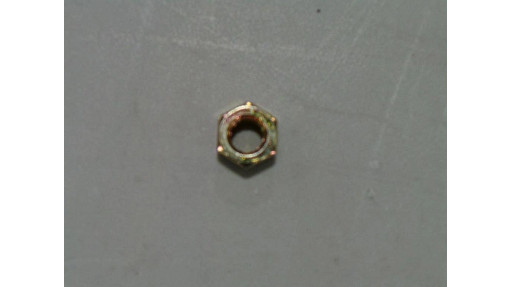

    86500689
    NUT Hex, M10 x 1.5, Cl 10, ZND; 688 Only
  • 6
    1
    H4050123
    PIPE; line (-3099), 688 ONLY
  • 6
    1
    E4350109
    PIPE; line (3101-), 688 ONLY
  • 7
    1
    E5931911
    HOSE; 500mm (-3099), 688 ONLY
  • 7
    1
    R5931991
    HOSE; 630mm (3101-), 688 ONLY
  • 8
    1
    M5931964
    HOSE; 630mm (-3099), 688 ONLY
  • 8
    1
    Q5431993
    HOSE 25.4mm ID x 1460mm L; 800mm (3101-), 688 ONLY
  • 9
    1
    T8747699
    PIPE; (-3099), 688 ONLY
  • 9
    1
    H7849171
    PIPE; (3101-), 688 ONLY
  • 10
    1
    S8747698
    PIPE; (-3099), 688 ONLY
  • 10
    1
    J7849172
    PIPE; (3101-), 688 ONLY
  • 11
    2
    P5931920
    HOSE; 1400mm (-3099), 688 ONLY
  • 11
    2
    D5931979
    HOSE; 1400mm (3101-), 688 ONLY
  • 12
    4

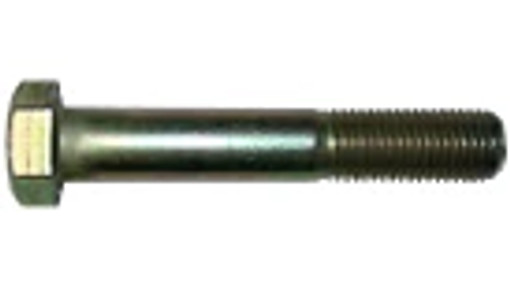

    614-10060
    BOLT Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd; 688 ONLY
  • 13
    15
    J1133839
    SCREW; M10 x 45 x 45, 688 ONLY
  • 14
    28
    N4328796
    WASHER; 10.25 x 7 x 20, 688 ONLY
  • 15
    16
    H1245227
    WASHER; D10 L, 688 ONLY
  • 16
    1
    G4050122
    PIPE; line (-3099), 688 ONLY
  • 16
    1
    D4350108
    PIPE; line (3101-), 688 ONLY
  • 17
    1
    REF
    INSTRUCTION; PLATE, See Standard Catalog, 688 ONLY
  • 18
    4
    Q5931990
    HOSE; 500mm, 688 ONLY
  • 19
    1
    REF
    INSTRUCTION; HEADLIGHT, See Standard Catalog, 688 ONLY
