Ref.
Qty
Part #
Alts
Description
-
11NOT SOLD SEPARAT; BOOM, Consists Of 2 - 4, See To Sales Department, 688 ONLY
-
22BUSHING; 60 x 75 x 55, 688 ONLY
-
31BUSHING; 60 x 75 x 90, 688 ONLY
-
41SHAFT LOCK; 688 ONLY
-
5ARPIN; Dia 60 (-3099)
-
51PIN; ''0'' 60 (3101-), 688 ONLY
-
61PIN; 688 ONLY
-
72SEAL; 688 ONLY
-
81PIN; Dia 60, 688 ONLY
-
92BUSHING; 688 ONLY
-
10ARWASHER 61mm ID x 110mm OD x 2mm Thk; 61 x 110 x 2, 688 ONLY
-
118SEAL 60mm ID x 75mm OD x 8mm Thk; 688 ONLY
-
122LUBE NIPPLE 1/8''-27 NPT; 688 ONLY
-
132BOLT Hex, M12 x 1.75 x 110mm, Cl 8.8; 688 ONLY
-
141PIN; ''0'' 70, 688 ONLY
-
152SAFETY NUT; M12, 688 ONLY
-
16ARWASHER; 71 x 110 x 2, 688 ONLY
-
171WASHER; M42 U, 688 ONLY
-
181NUT; M42, 688 ONLY
-
191SPLIT PIN/SAFETY PIN; 688 ONLY
Select All
Select
Ref.
1Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BOOM, Consists Of 2 - 4, See To Sales Department, 688 ONLYImg
Alts
Select
Ref.
2Qty
2Availability
Part #
B1528673Description
BUSHING; 60 x 75 x 55, 688 ONLYImg
Alts
Select
Ref.
3Qty
1Availability
Part #
D4628776Description
BUSHING; 60 x 75 x 90, 688 ONLYImg
Alts
Select
Ref.
5Qty
1Availability
Part #
D3430913Description
PIN; ''0'' 60 (3101-), 688 ONLYImg
Alts
Select
Ref.
10Qty
ARAvailability
Part #
L145347Description
WASHER 61mm ID x 110mm OD x 2mm Thk; 61 x 110 x 2, 688 ONLYImg
Alts
Select
Ref.
11Qty
8Availability
Part #
R151309Description
SEAL 60mm ID x 75mm OD x 8mm Thk; 688 ONLYImg
Alts
Select
Ref.
12Qty
2Availability
Part #
W45836Description
LUBE NIPPLE 1/8''-27 NPT; 688 ONLYImg
Alts
Select
Ref.
13Qty
2Availability
Part #

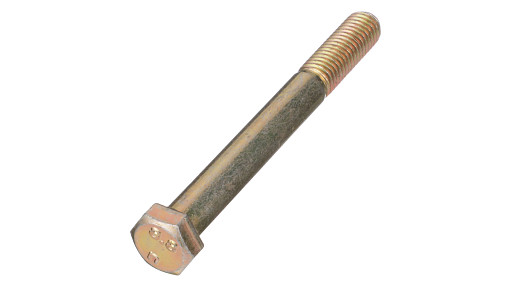

86562594Description
BOLT Hex, M12 x 1.75 x 110mm, Cl 8.8; 688 ONLYImg
Alts
Select
Ref.
16Qty
ARAvailability
Part #
D745341Description
WASHER; 71 x 110 x 2, 688 ONLYImg
Alts
