850M CRAWLER DOZER - WIDE... 10 - ENGINE 10.001.AK[030] - ENGINE
10.001.AK[030] - ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47794964

Description

ENGINE NEF,4.5L,4CYL,4V,T4A;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

47940566

Description

DIPSTICK;


Alts

Select

Ref.

3

Qty

6

Availability

Part #

87655041

Description

WASHER 6.85mm ID x 13.5mm OD x 2mm Thk;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

47750021

Description

BRACKET; DIPSTICK MOUNT


Alts

Select

Ref.

5

Qty

2

Availability

Part #

86511839

Description

FLANGE BOLT Hvy Hex, M6 x 30mm, Cl 8.8;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

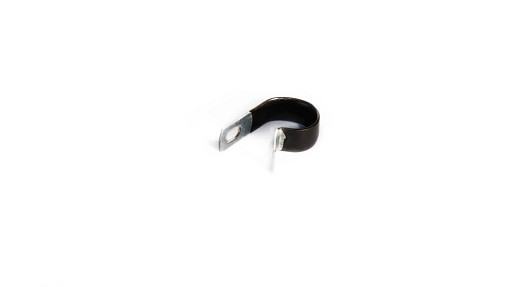

86978777

Description

CLAMP 17.5mm, Coat, 7.1mm Bolt Hole, P Type;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

120100

Description

BOLT Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

9706755

Description

NUT Hex, M6 x 1, Cl 8, ZND;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

47940565

Description

TUBE;


Alts

Select

Ref.

10

Qty

2

Availability

Part #

86511845

Description

FLANGE BOLT M10 x 44.2mm OAL, Cl 8.8, Full Thd;


Alts

Select

Ref.

11

Qty

14

Availability

Part #

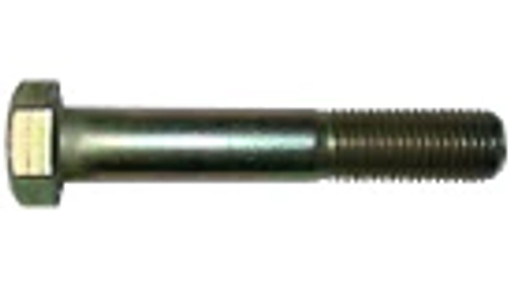

87584292

Description

LOCK BOLT Hex, M12 x 40mm, Cl 10.9;


Alts

Select

Ref.

12

Qty

14

Availability

Part #

896-11012

Description

WASHER 13.5mm ID x 24mm OD x 3mm Thk;


Alts

Select

Ref.

13

Qty

4

Availability

Part #

86012007

Description

LOCK NUT M16 x 2, Cl 10;


Alts

Select

Ref.

14

Qty

4

Availability

Part #

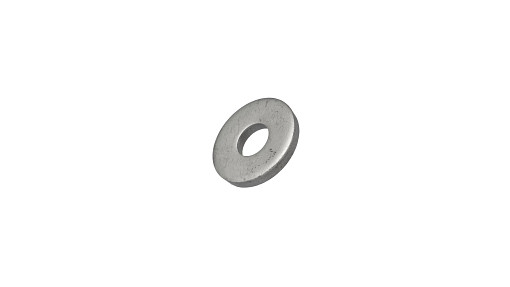

86592702

Description

WASHER 17mm ID x 45mm OD x 6mm Thk, HTS, ZND;


Alts

Select

Ref.

15

Qty

4

Availability

Part #

1791248

Description

BOLT Hex, M16 x 140mm, Cl 10.9;


Alts

Select

Ref.

16

Qty

8

Availability

Part #

47395221

Description

WASHER 0.66'' ID x 3'' OD x 0.18'' Thk;


Alts

Select

Ref.

17

Qty

8

Availability

Part #

84383342

Description

ISOLATOR 55 Durometer;


Alts

Select

Ref.

18

Qty

2

Availability

Part #

47552456

Description

ENGINE MOUNT; REAR


Alts

Select

Ref.

19

Qty

1

Availability

Part #

47899577

Description

ENGINE MOUNT; FRONT, RH


Alts

Select

Ref.

20

Qty

1

Availability

Part #

47922334

Description

ENGINE MOUNT; FRONT, LH


Alts

Select

Ref.

21

Qty

1

Availability

Part #

8605783

Description

STARTER MOTOR; DENSO 4.5KW


Alts

Select

Ref.

22

Qty

1

Availability

Part #

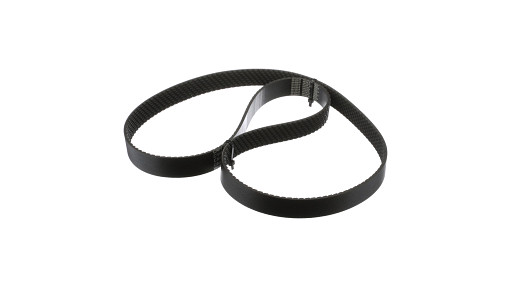

47635918

Description

V-BELT V-Belt, 28.58mm W x 1463mm L, 8 Ribs;


Alts
