19 - WINCH (01/65 - 12/87... 00 - COMPLETE MACHINE 30 - CLUTCH ASSEMBLY
30 - CLUTCH ASSEMBLY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D37865
    HUB; - clutch
  • 2
    6
    D37854
    CAM; - adjusting
  • 3
    6
    D37855
    PLATE; - lock
  • 4
    6
    192-21
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
  • 5
    6
    113-207
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 6
    1
    D37888
    ROD; - clutch cylinder assembly
  • 1
    D37963
    CYLINDER; ASSEMBLY - clutch, Includes: P/N D37963 and Ref. 7 - 11
  • 1
    V46778
    CYLINDER ASSY.; - cylinder repair, Includes: Ref. 7 - 10
  • 7
    1
    D37889
    BOOT; - clutch cylinder
  • 8
    1
    D37891
    PISTON; - clutch cylinder
  • 9
    1
    D37892
    CUP; SEAT - piston
  • 10
    1
    D37893
    SPRING; - clutch cylinder
  • 11
    1
    NSS
    NOT SOLD SEPARAT; BODY - clutch cylinder
  • 12
    1
    D37864
    LEVER; - clutch
  • 13
    2
    D37856
    FELT; - clutch lever
  • 14
    1
    D37851
    BAND; - secondary clutch, wide
  • 15
    1
    D37852
    BAND; - primary clutch, narrow
  • 16
    1
    D37862
    SPACER; - clutch lever
  • 17
    1
    F40433
    BEARING; BALL BEARING - clutch lever
  • 18
    1
    D37898
    HOSE ASSY.; HOSE - to clutch cylinder, used with Ref. 20, 21, & 22, if used
  • 19
    3
    138-96
    LOCK PIN 3/16'' x 1'', Slotted; PIN, 3/16'' x 1'', Slotted
  • 20
    1
    221-109
    PIPE Nipple, 1/8'' NPT x 2''; NIPPLE - pipe, 1/8'' NPT x 2'', if used
  • 21
    1
    222-762

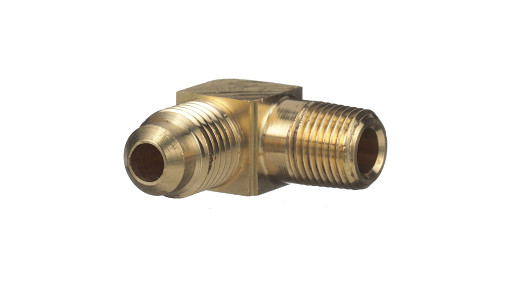

    ELBOW 90 Degree, 7/16''-20, 45 Degree Fl x 1/8'' NPT; male, if used 90?, 7/16''-20, 45? Fl x 1/8'' NPT
  • 22
    1
    221-365
    ELBOW 45 Degree, 1/8'' NPT; - 45 degree, female, if used
  • 24
    1
    R24125
    FITTING; ADAPTER - clutch lever, if used
  • 25
    1
    R24123
    HOSE; - to clutch cylinder, if used
  • 26
    1
    222-802
    HYD CONNECTOR 7/16''-20, 45 Degree Fl x 1/8'' NPT; ADAPTER - straight, if used
