TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1FRONT IDLER; WHEEL AND BRACKET left hand (For Service, order R29569 assembly), Includes Ref: 1-16
-
1X; IDLER WHEEL AND BRACKET right hand (For Service, order R29569 assembly), Includes Ref: 1-16
-
11PIN; cotter, 1/4'' diameter x 2-1/4''
-
21SLOTTED NUT 1 1/2''-12, G5; hexagon slotted, 1-1/2'' U.N.F.
-
32WASHER; special
-
41X; BRACKET idler wheel, L.H., order R27941
-
52SEAL; face, Includes Ref: 6-8
-
61NOT SOLD SEPARAT; BODY seal, split
-
1SEAL KIT; repair, Includes Ref: 7, 8
-
72NOT SOLD SEPARAT; SEAL rubber
-
82NOT SOLD SEPARAT; RETAINER plastic
-
92RING; seal retaining
-
102BEARING, CONE 50.8mm ID x 30.96mm W;
-
112BEARING CUP; BEARING
-
121FRONT IDLER; WHEEL
-
131PLUG; pipe, hexagon socket head, 1/4'' N.P.T.
-
141SHAFT; idler
-
151NO LONGER SERVICED; idler wheel, R.H., order R27941
-
161JAM NUT Jam, 1 1/2''-12, G5; hexagon, lock 1-1/2'' U.N.F.
-
178BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 5;
-
188LOCK WASHER 1/2'';
-
192YOKE; UNIVERSAL JOINT YOKE front idler wheel
-
202LUBE NIPPLE 1/8'' - 27 NPTF;
-
212CHECK VALVE 5/8'' - 18UNF, 1/8''NPTF; CHECK BALL ASSEMBLY track adjuster
-
2ADJUSTER; TRACK hydraulic, Includes Ref: 22-29
-
221PISTON; track adjuster
-
231RING; snap, front (When stock exhausted, for service supply D95149);Tubes without snap ring groove must use D95149 seal
-
241WIPER; SEAL (Used with D32043 ring)
-
241PACKING RING 60.24mm ID x 73.05mm OD x 7.92mm Thk; SEAL wiper, Replaces: Refs. 23 & 24 above, (First used on Wide Track Dozer 7111732)
-
251RING 60.43mm ID x 73.15mm OD x 25.4mm L; rider
-
261BEARING; bearing, backup
-
271RING; packing, ''U'' cup, Replaces: D95383
-
281SNAP RING #200, Ext; rear #200, Ext
-
291TUBE; SPARE PART track adjuster
Select All
Select
Ref.
Qty
1Availability
Part #
D43267Description
FRONT IDLER; WHEEL AND BRACKET left hand (For Service, order R29569 assembly), Includes Ref: 1-16Img
Alts
Select
Ref.
Qty
1Availability
Part #
D43268Description
X; IDLER WHEEL AND BRACKET right hand (For Service, order R29569 assembly), Includes Ref: 1-16Img
Alts
Select
Ref.
1Qty
1Availability
Part #
132-156Description
PIN; cotter, 1/4'' diameter x 2-1/4''Img
Alts
Select
Ref.
2Qty
1Availability
Part #
25-1324Description

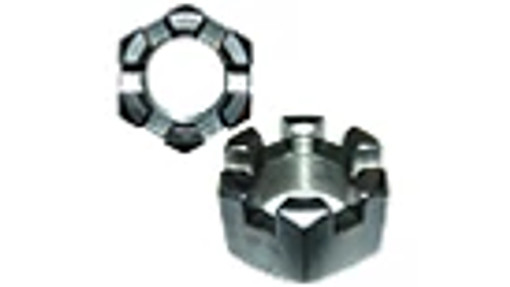

SLOTTED NUT 1 1/2''-12, G5; hexagon slotted, 1-1/2'' U.N.F.Img
Alts
Select
Ref.
4Qty
1Availability
Part #
D36066Description
X; BRACKET idler wheel, L.H., order R27941Img
Alts
Select
Ref.
Qty
1Availability
Part #
D36826Description
SEAL KIT; repair, Includes Ref: 7, 8Img
Alts
Select
Ref.
10Qty
2Availability
Part #
51200231Description
BEARING, CONE 50.8mm ID x 30.96mm W;Img
Alts
Select
Ref.
13Qty
1Availability
Part #
221-841Description
PLUG; pipe, hexagon socket head, 1/4'' N.P.T.Img
Alts
Select
Ref.
15Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; idler wheel, R.H., order R27941Img
Alts
Select
Ref.
16Qty
1Availability
Part #
25-1524Description
JAM NUT Jam, 1 1/2''-12, G5; hexagon, lock 1-1/2'' U.N.F.Img
Alts
Select
Ref.
17Qty
8Availability
Part #
13-828Description
BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 5;Img
Alts
Select
Ref.
19Qty
2Availability
Part #
D36360Description
YOKE; UNIVERSAL JOINT YOKE front idler wheelImg
Alts
Select
Ref.
21Qty
2Availability
Part #
D35287Description

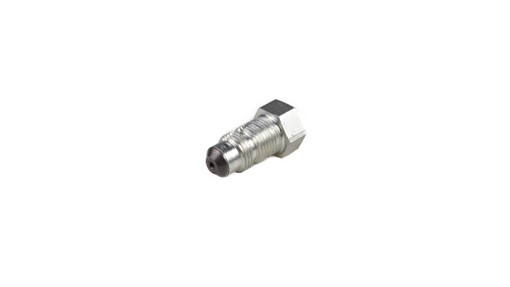

CHECK VALVE 5/8'' - 18UNF, 1/8''NPTF; CHECK BALL ASSEMBLY track adjusterImg
Alts
Select
Ref.
Qty
2Availability
Part #
D36642Description
ADJUSTER; TRACK hydraulic, Includes Ref: 22-29Img
Alts
Select
Ref.
23Qty
1Availability
Part #
D32043Description
RING; snap, front (When stock exhausted, for service supply D95149);Tubes without snap ring groove must use D95149 sealImg
Alts
Select
Ref.
24Qty
1Availability
Part #
D37798Description
WIPER; SEAL (Used with D32043 ring)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
D95149Description

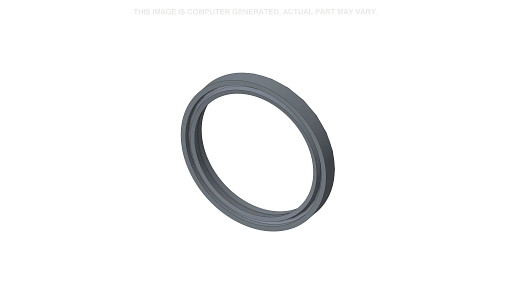

PACKING RING 60.24mm ID x 73.05mm OD x 7.92mm Thk; SEAL wiper, Replaces: Refs. 23 & 24 above, (First used on Wide Track Dozer 7111732)Img
Alts
Select
Ref.
25Qty
1Availability
Part #
D30374Description

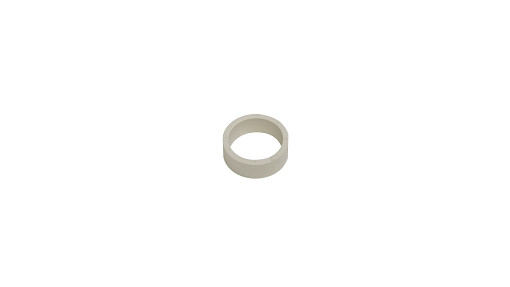

RING 60.43mm ID x 73.15mm OD x 25.4mm L; riderImg
Alts
Select
Ref.
27Qty
1Availability
Part #
D36971Description
RING; packing, ''U'' cup, Replaces: D95383Img
Alts
Select
Ref.
28Qty
1Availability
Part #
D23191Description
SNAP RING #200, Ext; rear #200, ExtImg
Alts
Select
Ref.
29Qty
1Availability
Part #
D36357Description
TUBE; SPARE PART track adjusterImg
Alts
