F5CE5454G A001 - ENGINE 5... 10 - ENGINE 10.001.02 - CRANKCASE UP ...
10.001.02 - CRANKCASE UP TO # 327249 & FROM # 537166
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

5801372225

Description

CYLINDER BLOCK; ASSY Incl 2 - 9 / UP TO # 600797


Alts

Select

Ref.

1

Qty

1

Availability

Part #

5802754628

Description

CYLINDER BLOCK; FROM # 600798


Alts

Select

Ref.

2

Qty

10

Availability

Part #

4891353

Description

FLANGE BOLT Flg Hd, M12 x 1.5 x 120;


Alts

Select

Ref.

3

Qty

14

Availability

Part #

7300019

Description

DOWEL 0.75mm Thk;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

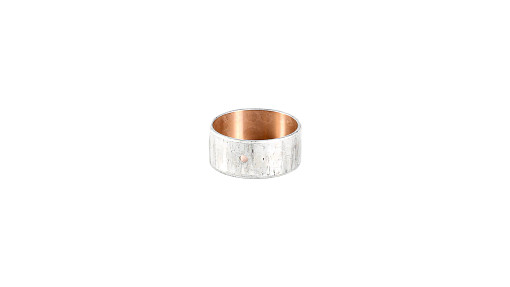

4895040

Description

BUSHING 54.39mm ID x 59.39mm OD x 25.4mm L; up to engine serial number 274922


Alts

Select

Ref.

4

Qty

1

Availability

Part #

5801847050

Description

CAMSHAFT BEARING; from engine serial number 274923 / UP TO # 600797


Alts

Select

Ref.

4

Qty

1

Availability

Part #

5802570034

Description

CAMSHAFT BEARING; FROM # 600798


Alts

Select

Ref.

5

Qty

3

Availability

Part #

16988101

Description

PLUG;


Alts

Select

Ref.

6

Qty

4

Availability

Part #

504138060

Description

PLUG;


Alts

Select

Ref.

7

Qty

6

Availability

Part #

14329901

Description

PLUG M40, Tapered;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

16990970

Description

PLUG Lock, 30mm Dia;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

504016052

Description

HEX SOCKET PLUG M14 x 1.5;


Alts

Select

Ref.

10

Qty

4

Availability

Part #

504156515

Description

LUBE OIL NOZZLE;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

504356829

Description

PIPE FITTING M14 x 1.5;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

504077652

Description

SEALING WASHER 13mm ID x 19mm OD;


Alts
