188 - CASE GASOLINE ENGIN... NO_D - NO DESCRIPTION 128 - G44891 SOLENOID, A5...
128 - G44891 SOLENOID, A51716 ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    G44891
    SOLENOID; ASSY - (Delco-Remy no. 1114356) (See Delco-Remy dealer for all parts illustrated but not listed)
  • 1
    1
    A42061
    SWITCH; CONTACT ASSY - solenoid
  • 2
    1
    A42059
    SPRING; - contact return
  • 3
    1
    A42060
    HALF BLADE; BLADE - contact
  • 4
    4
    129-16
    NUT #8-32; Terminal #8-32
  • 5
    3

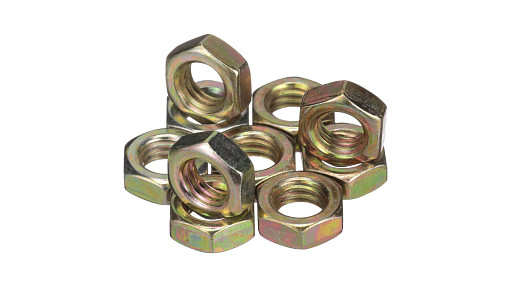

    87016560
    JAM NUT Jam, 3/8''-16, G5; Terminal Jam, 3/8''-16, G5
  • 6
    2
    192-16
    LOCK WASHER Helical Spring, #8, 0.17'' ID, CST, ZND; Washer, Lock, #8
  • 7
    1
    192-21
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
  • 8
    1
    A40221
    SPRING; - plunger return
  • 1
    A43662
    CONVERSION KIT; - starter, A43662 to convert A38413 into A39839
  • 12
    1
    A43652
    DRIVE; ASSY - with 10 tooth pinion, A43662 conversion kit to convert A38413 into A39839
  • 13
    1
    A43653
    HOUSING; FRAME ASSY - starter drive end, A43662 conversion kit to convert A38413 into A39839
  • 14
    1
    A40227
    BUSHING; - 1/2'' (12.7MM) x 9/16'' (14.3MM) x 25/32'' (19.8MM), A43662 conversion kit to convert A38413 into A39839
  • 16
    1
    321-2937
    DECAL; - conversion motor, A43662 conversion kit to convert A38413 into A39839
Select All

Select

Ref.

Qty

1

Availability

Part #

G44891

Description

SOLENOID; ASSY - (Delco-Remy no. 1114356) (See Delco-Remy dealer for all parts illustrated but not listed)


Alts

Select

Ref.

1

Qty

1

Availability

Part #

A42061

Description

SWITCH; CONTACT ASSY - solenoid


Alts

Select

Ref.

2

Qty

1

Availability

Part #

A42059

Description

SPRING; - contact return


Alts

Select

Ref.

3

Qty

1

Availability

Part #

A42060

Description

HALF BLADE; BLADE - contact


Alts

Select

Ref.

4

Qty

4

Availability

Part #

129-16

Description

NUT #8-32; Terminal #8-32


Alts

Select

Ref.

5

Qty

3

Availability

Part #

87016560

Description

JAM NUT Jam, 3/8''-16, G5; Terminal Jam, 3/8''-16, G5


Alts

Select

Ref.

6

Qty

2

Availability

Part #

192-16

Description

LOCK WASHER Helical Spring, #8, 0.17'' ID, CST, ZND; Washer, Lock, #8


Alts

Select

Ref.

7

Qty

1

Availability

Part #

192-21

Description

LOCK WASHER 3/8''; WASHER, LOCK, 3/8''


Alts

Select

Ref.

8

Qty

1

Availability

Part #

A40221

Description

SPRING; - plunger return


Alts

Select

Ref.

Qty

1

Availability

Part #

A43662

Description

CONVERSION KIT; - starter, A43662 to convert A38413 into A39839


Alts

Select

Ref.

12

Qty

1

Availability

Part #

A43652

Description

DRIVE; ASSY - with 10 tooth pinion, A43662 conversion kit to convert A38413 into A39839


Alts

Select

Ref.

13

Qty

1

Availability

Part #

A43653

Description

HOUSING; FRAME ASSY - starter drive end, A43662 conversion kit to convert A38413 into A39839


Alts

Select

Ref.

14

Qty

1

Availability

Part #

A40227

Description

BUSHING; - 1/2'' (12.7MM) x 9/16'' (14.3MM) x 25/32'' (19.8MM), A43662 conversion kit to convert A38413 into A39839


Alts

Select

Ref.

16

Qty

1

Availability

Part #

321-2937

Description

DECAL; - conversion motor, A43662 conversion kit to convert A38413 into A39839


Alts
