Ref.
Qty
Part #
Alts
Description
-
11INSTRUCTION; FILTER ASSY - fuel (See Figures 112 and 114)
-
23BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5;
-
33LOCK WASHER 5/16'';
-
41TUBE; LINE - fuel filter to pump (Replaces A36566)
-
53ELBOW 90 Degree, 5/8''-24 Fem x 1/4''-27 NPTF; ASSY - 90 degrees
-
61SLEEVE 3/8'' Tube; - for 3/8'' (9.5MM) Tube
-
71NUT 5/8''-24; NUT - for 3/8'' (9.5MM) Tube
-
81LOCK NUT; - sealing, 1/4'' PT (At pump)
-
91INSTRUCTION; PUMP ASSY - fuel injection (See Figures 104 thru 106)
-
111TUBE; ASSY - pump to no. 1 cylinder (Includes items 15, 16 and 17)
-
121TUBE; ASSY - pump to no. 2 cylinder (Includes items 15, 16 and 17)
-
131TUBE; ASSY - pump to no. 3 cylinder (Includes items 15, 16 and 17)
-
141TUBE; ASSY - pump to no. 4 cylinder (Includes items 15, 16 and 17);Ref 14 A41394 not illustrated properly the part pictured is a35061 see 310G crawler Figure 40 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/99
-
151PIPE FITTING; SLEEVE - tube (At nozzle)
-
161NUT; - tube (At nozzle)
-
172WASHER 9.63mm ID x 12.83mm OD x 1.65mm Thk; WASHER - screw connector (At pump)
-
184BRACKET; CLAMP - injection tubes
-
192SCREW Sl Rnd Hd, #10 - 24 x 1''; BOLT - #10-24 x 1'' round head
-
202SPRING NUT Flat, #10 - 24, 0.022'' Thk; NUT - #10-24 Tinnerman
-
254INSTRUCTION; NOZZLE ASSY - fuel injection (See Figures 112 and 114)
-
264CLAMP; ASSY - injection nozzle
-
374SPACER; - nozzle clamp
-
281TUBE; - leak-off, pump to tee (Replaces A38158 & A51658)
-
294TEE 1/2'' - 25 NPT x 1/2'' - 25 NPT x 9/16'' - 24 NPT; TEE - nozzle leak-off
-
303TUBE; - leak-off
-
318SLEEVE 1/4'' Tube; (6.35 mm) 1/4'' Tube
-
328TUBE NUT 1/2''-24; NUT - for 1/4'' (6.4MM) Tube
-
334GROMMET 9.14mm ID x 12.82mm OD x 5.28mm Thk; - nozzle cap (Rubber)
-
344NUT; - nozzle
-
351TEE 1/4'' Flex Tube Run x 1/8'' NPTF Br; ASSY - pump to leak-off
-
362SLEEVE 1/4'' Tube; (6.35 mm) 1/4'' Tube
-
372TUBE NUT 1/2''-24; NUT - for 1/4'' (6.4MM) Tube
-
381LOCK NUT; - sealing, tee to pump, 1/8'' PT (At pump)
-
431CLIP; - fuel shut-off cable
-
441BOLT Hex, 1/4'' - 20 x 1/2'', Gr 5;
-
451LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
461RIVET FH, 1/4'' x 7/16''; PLUG - leak-off tee, rear
Select All
Select
Ref.
1Qty
1Availability
Part #
REFDescription
INSTRUCTION; FILTER ASSY - fuel (See Figures 112 and 114)Img
Alts
Select
Ref.
2Qty
3Availability
Part #
13-514Description
BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5;Img
Alts
Select
Ref.
4Qty
1Availability
Part #
A51784Description
TUBE; LINE - fuel filter to pump (Replaces A36566)Img
Alts
Select
Ref.
5Qty
3Availability
Part #
222-47Description
ELBOW 90 Degree, 5/8''-24 Fem x 1/4''-27 NPTF; ASSY - 90 degreesImg
Alts
Select
Ref.
6Qty
1Availability
Part #
222-104Description
SLEEVE 3/8'' Tube; - for 3/8'' (9.5MM) TubeImg
Alts
Select
Ref.
7Qty
1Availability
Part #
222-114Description
NUT 5/8''-24; NUT - for 3/8'' (9.5MM) TubeImg
Alts
Select
Ref.
8Qty
1Availability
Part #
A38161Description
LOCK NUT; - sealing, 1/4'' PT (At pump)Img
Alts
Select
Ref.
9Qty
1Availability
Part #
REFDescription
INSTRUCTION; PUMP ASSY - fuel injection (See Figures 104 thru 106)Img
Alts
Select
Ref.
11Qty
1Availability
Part #
A41391Description
TUBE; ASSY - pump to no. 1 cylinder (Includes items 15, 16 and 17)Img
Alts
Select
Ref.
12Qty
1Availability
Part #
A41392Description
TUBE; ASSY - pump to no. 2 cylinder (Includes items 15, 16 and 17)Img
Alts
Select
Ref.
13Qty
1Availability
Part #
A41393Description
TUBE; ASSY - pump to no. 3 cylinder (Includes items 15, 16 and 17)Img
Alts
Select
Ref.
14Qty
1Availability
Part #
A41394Description
TUBE; ASSY - pump to no. 4 cylinder (Includes items 15, 16 and 17);Ref 14 A41394 not illustrated properly the part pictured is a35061 see 310G crawler Figure 40 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/99Img
Alts
Select
Ref.
15Qty
1Availability
Part #
A37850Description
PIPE FITTING; SLEEVE - tube (At nozzle)Img
Alts
Select
Ref.
17Qty
2Availability
Part #
G49407Description
WASHER 9.63mm ID x 12.83mm OD x 1.65mm Thk; WASHER - screw connector (At pump)Img
Alts
Select
Ref.
18Qty
4Availability
Part #
A58709Description
BRACKET; CLAMP - injection tubesImg
Alts
Select
Ref.
19Qty
2Availability
Part #
173-102Description
SCREW Sl Rnd Hd, #10 - 24 x 1''; BOLT - #10-24 x 1'' round headImg
Alts
Select
Ref.
20Qty
2Availability
Part #
131-612Description
SPRING NUT Flat, #10 - 24, 0.022'' Thk; NUT - #10-24 TinnermanImg
Alts
Select
Ref.
25Qty
4Availability
Part #
REFDescription
INSTRUCTION; NOZZLE ASSY - fuel injection (See Figures 112 and 114)Img
Alts
Select
Ref.
28Qty
1Availability
Part #
A142906Description
TUBE; - leak-off, pump to tee (Replaces A38158 & A51658)Img
Alts
Select
Ref.
29Qty
4Availability
Part #
A58960Description

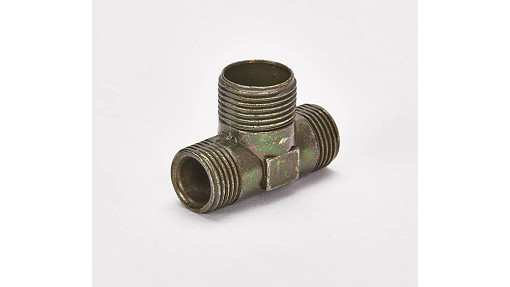

TEE 1/2'' - 25 NPT x 1/2'' - 25 NPT x 9/16'' - 24 NPT; TEE - nozzle leak-offImg
Alts
Select
Ref.
31Qty
8Availability
Part #
222-102Description
SLEEVE 1/4'' Tube; (6.35 mm) 1/4'' TubeImg
Alts
Select
Ref.
32Qty
8Availability
Part #
87017024Description
TUBE NUT 1/2''-24; NUT - for 1/4'' (6.4MM) TubeImg
Alts
Select
Ref.
33Qty
4Availability
Part #
A58962Description
GROMMET 9.14mm ID x 12.82mm OD x 5.28mm Thk; - nozzle cap (Rubber)Img
Alts
Select
Ref.
35Qty
1Availability
Part #
222-72Description
TEE 1/4'' Flex Tube Run x 1/8'' NPTF Br; ASSY - pump to leak-offImg
Alts
Select
Ref.
36Qty
2Availability
Part #
222-102Description
SLEEVE 1/4'' Tube; (6.35 mm) 1/4'' TubeImg
Alts
Select
Ref.
37Qty
2Availability
Part #
87017024Description
TUBE NUT 1/2''-24; NUT - for 1/4'' (6.4MM) TubeImg
Alts
Select
Ref.
38Qty
1Availability
Part #
A38160Description
LOCK NUT; - sealing, tee to pump, 1/8'' PT (At pump)Img
Alts
Select
Ref.
44Qty
1Availability
Part #
13-48Description
BOLT Hex, 1/4'' - 20 x 1/2'', Gr 5;Img
Alts
Select
Ref.
45Qty
1Availability
Part #
92-4Description
LOCK WASHER 1/4''; WASHER, LOCK, 1/4''Img
Alts
Select
Ref.
46Qty
1Availability
Part #
47-47Description
RIVET FH, 1/4'' x 7/16''; PLUG - leak-off tee, rearImg
Alts
