TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1KIT; GASKET KIT - valve grind (See note)
-
22CYLINDER HEAD GASKET; - cylinder
-
32CYLINDER HEAD GASKET; - cylinder head cover
-
42MANIFOLD GASKET; - water manifold
-
51GASKET; - thermostat housing
-
64MANIFOLD GASKET; - intake manifold
-
74GASKET; - exhaust manifold (Metal faced)
-
74MANIFOLD GASKET; GASKSET - exhaust manifold (Asbestos faced) (Not used this application)
-
84WASHER 9.55mm ID x 14.18mm OD x 3.38mm Thk; - injector nozzle
-
94SEAL 7.89mm ID x 9.74mm OD x 2.87mm Thk; - carbon stop, injector nozzle
-
102GASKET 17.27mm ID x 32mm OD x 6.6mm Thk; - breather tube, lower, 11/16 x 1-1/4 x 1/4'' (17.46 x 31.75 x 6.35 MM)
-
112GASKET; - breather tube, upper, 1/4 x 1/2 x 1/16'' (6.35 x 12.7 x 1.59 MM)
-
124GASKET; GASKET - cover studs, 1/2 x 7/8 x 1/8'' (12.7 x 22.23 x 3.18 MM)
-
132O-RING 0.07'' Thk x 0.18'' ID, -8, Cl 5, 75 Duro; - rocker shaft oil tube, 3/16 x 5/16 x 1/16'' (4.76 x 7.94 x 1.59 MM)
-
148SEAL 8mm ID x 13.77mm OD x 2.16mm Thk; - valve stem (Rubber) (See ref. 40)
-
151GASKET 1.59mm Thk; - turbo oil drain tube
-
161GASKET; - turbo air intake elbow
-
172GASKET 0.45mm Thk; - turbo-charger
-
1GASKET KIT; - cylinder block (See note)
-
211GASKET; - timing gear cover
-
221GASKET; - rear seal retainer
-
231OIL SEAL 2-5/8'' x 3-5/8 x 1/2''; - oil, crankshaft, front, 2-5/8 x 3-5/8 x 1/2'' (66.68 x 92.08 x 12.7 MM)
-
241OIL SEAL; - oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2'' (120.65 x 146.05 x 12.7 MM)
-
251GASKET; - fuel pump cover
-
261OIL PAN GASKET SET; - oil filter base
-
271GASKET; - water
-
281GASKET; - water pump
-
291SEALING WASHER; GASKET - timing window plug
-
301GASKET; (Not used this application)
-
311GASKET; (Not used this application)
-
323O-RING 0.93'' ID x 1.142'' x 0.106''; - oil filter base, 15/16 x 1-1/8 x 3/32'' (23.81 x 28.58 x 2.38 MM)
-
331OIL PAN GASKET SET; (Not used this application)
-
341GASKET; (Not used this application)
-
402SEAL KIT; SEAL KIT - valves (Includes 4 seals and installation sleeve)
Select All
Select
Ref.
Qty
1Availability
Part #
A46367Description
KIT; GASKET KIT - valve grind (See note)Img
Alts
Select
Ref.
2Qty
2Availability
Part #
A138397Description
CYLINDER HEAD GASKET; - cylinderImg
Alts
Select
Ref.
3Qty
2Availability
Part #
A65734Description
CYLINDER HEAD GASKET; - cylinder head coverImg
Alts
Select
Ref.
4Qty
2Availability
Part #
A58637Description
MANIFOLD GASKET; - water manifoldImg
Alts
Select
Ref.
6Qty
4Availability
Part #
A58662Description
MANIFOLD GASKET; - intake manifoldImg
Alts
Select
Ref.
7Qty
4Availability
Part #
A58895Description
GASKET; - exhaust manifold (Metal faced)Img
Alts
Select
Ref.
7Qty
4Availability
Part #
A58666Description
MANIFOLD GASKET; GASKSET - exhaust manifold (Asbestos faced) (Not used this application)Img
Alts
Select
Ref.
8Qty
4Availability
Part #
A41403Description
WASHER 9.55mm ID x 14.18mm OD x 3.38mm Thk; - injector nozzleImg
Alts
Select
Ref.
9Qty
4Availability
Part #
A41402Description
SEAL 7.89mm ID x 9.74mm OD x 2.87mm Thk; - carbon stop, injector nozzleImg
Alts
Select
Ref.
10Qty
2Availability
Part #
A58635Description
GASKET 17.27mm ID x 32mm OD x 6.6mm Thk; - breather tube, lower, 11/16 x 1-1/4 x 1/4'' (17.46 x 31.75 x 6.35 MM)Img
Alts
Select
Ref.
11Qty
2Availability
Part #
A34133Description
GASKET; - breather tube, upper, 1/4 x 1/2 x 1/16'' (6.35 x 12.7 x 1.59 MM)Img
Alts
Select
Ref.
12Qty
4Availability
Part #
A23684Description
GASKET; GASKET - cover studs, 1/2 x 7/8 x 1/8'' (12.7 x 22.23 x 3.18 MM)Img
Alts
Select
Ref.
13Qty
2Availability
Part #
A27880Description
O-RING 0.07'' Thk x 0.18'' ID, -8, Cl 5, 75 Duro; - rocker shaft oil tube, 3/16 x 5/16 x 1/16'' (4.76 x 7.94 x 1.59 MM)Img
Alts
Select
Ref.
14Qty
8Availability
Part #
A58628Description
SEAL 8mm ID x 13.77mm OD x 2.16mm Thk; - valve stem (Rubber) (See ref. 40)Img
Alts
Select
Ref.
15Qty
1Availability
Part #
A58892Description
GASKET 1.59mm Thk; - turbo oil drain tubeImg
Alts
Select
Ref.
16Qty
1Availability
Part #
A58910Description
GASKET; - turbo air intake elbowImg
Alts
Select
Ref.
17Qty
2Availability
Part #
A58899Description
GASKET 0.45mm Thk; - turbo-chargerImg
Alts
Select
Ref.
Qty
1Availability
Part #
A44075Description
GASKET KIT; - cylinder block (See note)Img
Alts
Select
Ref.
23Qty
1Availability
Part #
A62049Description
OIL SEAL 2-5/8'' x 3-5/8 x 1/2''; - oil, crankshaft, front, 2-5/8 x 3-5/8 x 1/2'' (66.68 x 92.08 x 12.7 MM)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
A62050Description
OIL SEAL; - oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2'' (120.65 x 146.05 x 12.7 MM)Img
Alts
Select
Ref.
26Qty
1Availability
Part #
A58756Description
OIL PAN GASKET SET; - oil filter baseImg
Alts
Select
Ref.
29Qty
1Availability
Part #
A58613Description
SEALING WASHER; GASKET - timing window plugImg
Alts
Select
Ref.
30Qty
1Availability
Part #
A58617Description
GASKET; (Not used this application)Img
Alts
Select
Ref.
31Qty
1Availability
Part #

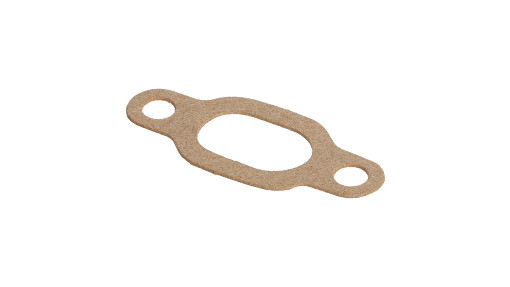

A58670Description
GASKET; (Not used this application)Img
Alts
Select
Ref.
32Qty
3Availability
Part #
A64434Description
O-RING 0.93'' ID x 1.142'' x 0.106''; - oil filter base, 15/16 x 1-1/8 x 3/32'' (23.81 x 28.58 x 2.38 MM)Img
Alts
Select
Ref.
33Qty
1Availability
Part #
A58680Description
OIL PAN GASKET SET; (Not used this application)Img
Alts
Select
Ref.
34Qty
1Availability
Part #
A76656Description
GASKET; (Not used this application)Img
Alts
Select
Ref.
40Qty
2Availability
Part #
M20614Description
SEAL KIT; SEAL KIT - valves (Includes 4 seals and installation sleeve)Img
Alts
