TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1SKELETON ENGINE; BLOCK ASSY - cylinder, short (Includes crankshaft & bearings, connecting rods & bearings, piston assy., camshaft & bearings, oil pump & timing gears) (Casting no. A37747)
-
21SKELETON ENGINE; BLOCK ASSY - stripped (Casting no. A37747)
-
33PLUG Hex Soc, 1/4'' - 18 NPTF; Oil gallery Hex Soc, 1/4''-18 NPTF
-
72STUD; BOLT - bearing cap & oil pump, 1/2 x 4-3/4'' NC
-
91BUSHING; SET - camshaft
-
101PLUG Exp, 2.12'' dia; - rear, 2-1/8'' (54MM) Expansion
-
113STUD; - 1/2'' NC x 2''
-
1214STUD; - 1/2'' NC x 5-7/8''
-
131TUBE; - oil filler & dipstick
-
141ADAPTER Wheel, 3/4 - 16 x 1.575, CST; - oil filter
-
151PLUG Cup, 1''; - filter hole, 1'' (25.4MM) Dia cup type
-
161TUBE; - oil filler extension
-
171O-RING 1.109'' ID x 1.387'' OD x 0.139''; - 1-1/8'' (28.6MM) x 1-3/8'' (34MM) x 1/8'' (3.2MM)
-
181HOSE CLAMP #20, 0.81'' - 1.75'', Type F Worm; CLAMP - hose, 1-3/16'' (30.2MM) to 1-3/4'' (44.5MM)
-
191BOLT; BOLT - shoulder, 5/8 x 3-3/16'' NC hex
-
201DRAINCOCK/TAP SUPPLY; VALVE - drain, cylinder block
-
211PLUG Sq Soc, 3/8''-18 NPTF; - LH side, 3/8'' PT socket head
-
222STUD; - 5/8'' NF x 2-1/4''
-
232RING; - dowel, timing gear cover locating
-
2419WASHER; - 1/2 x 7/8 x 1/16''
-
2519NUT; - 1/2'' NF hex
-
261DIPSTICK; ASSY - oil level (Turn-Tite type) (Replaces A37406)
-
271DIPSTICK; ASSY - oil gauge (O-ring type) (Order A136379)
-
282O-RING 0.139'' Thk x 0.734'' ID, -210, Cl 5, 75 Duro; - 3/4'' (19.1MM) x 1'' (25.4MM) x 1/8'' (3.2MM)
-
292BOLT; BOLT - shoulder, 5/8 x 3-1/4'' NC hex
-
331HEATER; ASSY - engine coolant, 400 watts at 115 volts
-

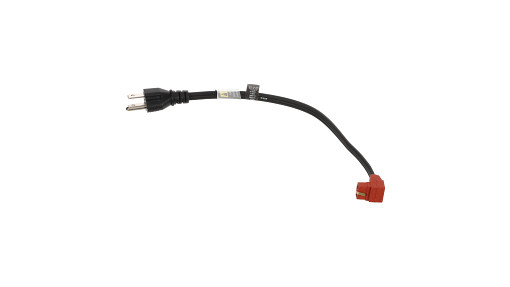

341ELECTRIC CABLE; CORD ASSY - heater, 13'' (330.2MM) Long, engine coolant
-
351HEATER; ASSY - engine coolant, 600 watts at 115 volts
-
361ELECTRIC CABLE; CORD ASSY - heater, 13'' (330.2MM) Long, engine coolant
Select All
Select
Ref.
Qty
1Availability
Part #
A41029Description
SKELETON ENGINE; BLOCK ASSY - cylinder, short (Includes crankshaft & bearings, connecting rods & bearings, piston assy., camshaft & bearings, oil pump & timing gears) (Casting no. A37747)Img
Alts
Select
Ref.
2Qty
1Availability
Part #
A41030Description
SKELETON ENGINE; BLOCK ASSY - stripped (Casting no. A37747)Img
Alts
Select
Ref.
3Qty
3Availability
Part #
217-433Description
PLUG Hex Soc, 1/4'' - 18 NPTF; Oil gallery Hex Soc, 1/4''-18 NPTFImg
Alts
Select
Ref.
7Qty
2Availability
Part #
G49509Description
STUD; BOLT - bearing cap & oil pump, 1/2 x 4-3/4'' NCImg
Alts
Select
Ref.
10Qty
1Availability
Part #
A39241Description
PLUG Exp, 2.12'' dia; - rear, 2-1/8'' (54MM) ExpansionImg
Alts
Select
Ref.
14Qty
1Availability
Part #
A153552Description
ADAPTER Wheel, 3/4 - 16 x 1.575, CST; - oil filterImg
Alts
Select
Ref.
15Qty
1Availability
Part #
41-1016Description
PLUG Cup, 1''; - filter hole, 1'' (25.4MM) Dia cup typeImg
Alts
Select
Ref.
17Qty
1Availability
Part #
A27342Description
O-RING 1.109'' ID x 1.387'' OD x 0.139''; - 1-1/8'' (28.6MM) x 1-3/8'' (34MM) x 1/8'' (3.2MM)Img
Alts
Select
Ref.
18Qty
1Availability
Part #
214-256Description
HOSE CLAMP #20, 0.81'' - 1.75'', Type F Worm; CLAMP - hose, 1-3/16'' (30.2MM) to 1-3/4'' (44.5MM)Img
Alts
Select
Ref.
19Qty
1Availability
Part #
A38303Description
BOLT; BOLT - shoulder, 5/8 x 3-3/16'' NC hexImg
Alts
Select
Ref.
20Qty
1Availability
Part #
A23656Description
DRAINCOCK/TAP SUPPLY; VALVE - drain, cylinder blockImg
Alts
Select
Ref.
21Qty
1Availability
Part #
221-32Description
PLUG Sq Soc, 3/8''-18 NPTF; - LH side, 3/8'' PT socket headImg
Alts
Select
Ref.
23Qty
2Availability
Part #
A29442Description
RING; - dowel, timing gear cover locatingImg
Alts
Select
Ref.
26Qty
1Availability
Part #
A136379Description
DIPSTICK; ASSY - oil level (Turn-Tite type) (Replaces A37406)Img
Alts
Select
Ref.
27Qty
1Availability
Part #
A37406Description
DIPSTICK; ASSY - oil gauge (O-ring type) (Order A136379)Img
Alts
Select
Ref.
28Qty
2Availability
Part #
F62075Description
O-RING 0.139'' Thk x 0.734'' ID, -210, Cl 5, 75 Duro; - 3/4'' (19.1MM) x 1'' (25.4MM) x 1/8'' (3.2MM)Img
Alts
Select
Ref.
29Qty
2Availability
Part #
A38303Description
BOLT; BOLT - shoulder, 5/8 x 3-1/4'' NC hexImg
Alts
Select
Ref.
33Qty
1Availability
Part #
A44815Description
HEATER; ASSY - engine coolant, 400 watts at 115 voltsImg
Alts
Select
Ref.
34Qty
1Availability
Part #
A44814Description
ELECTRIC CABLE; CORD ASSY - heater, 13'' (330.2MM) Long, engine coolantImg
Alts
Select
Ref.
35Qty
1Availability
Part #
A44816Description
HEATER; ASSY - engine coolant, 600 watts at 115 voltsImg
Alts
Select
Ref.
36Qty
1Availability
Part #
A44814Description
ELECTRIC CABLE; CORD ASSY - heater, 13'' (330.2MM) Long, engine coolantImg
Alts
